Does an NVMe SSD Need a Heatsink?

SSDs are fast. Like, really fast and tiny. And now we’re apparently supposed to worry about them getting too hot??

So… do SSDs actually need extra cooling, or are we just putting tiny heatsinks on everything because we can? It’s a fair question, especially now that modern SSDs are cramming more speed into less space and casually generating more heat while doing it.

Whether you need one depends on your SSD, workload, airflow and the cooling already available in your system. Many drives can maintain safe temperatures using normal system airflow or built-in motherboard M.2 cooling. However, an NVMe SSD heatsink can help high-performance PCIe 4.0 and PCIe 5.0 drives manage heat during sustained workloads and reduce the risk of thermal throttling.

Whether you need one depends on your SSD, workload, airflow and the cooling already available in your system.

When Does an NVMe SSD Need a Heatsink?

A heatsink is more likely to be beneficial when your SSD combines high performance with sustained workloads or limited airflow.

This distinction matters because SSD cooling does not make an SSD faster than its designed performance. Instead, effective cooling helps the drive sustain that performance by reducing the chance of thermal throttling.

Why Do NVMe SSDs Get Hot?

An NVMe SSD packs its controller, NAND flash and, on some models, dedicated DRAM into a small M.2 circuit board. The SSD controller performs much of the work involved in moving data between the NAND and the PCIe interface, and it can generate significant heat during demanding operations.

Higher performance can increase the cooling challenge because the drive may process considerably more data in a short period. This is one reason cooling became more noticeable as high-end PCIe 4.0 and PCIe 5.0 SSD performance increased.

Controller architecture, manufacturing process, firmware, NAND configuration and power efficiency all affect heat output. Newer designs can therefore deliver higher performance without necessarily producing proportionally more heat. Crucial says its current T710 Gen5 SSD uses around 25% less power than its previous-generation T705 despite offering very high Gen5 performance.

That is why it is better to check the cooling requirements for the specific SSD rather than assume every PCIe 5.0 drive needs the same large heatsink.

What Happens When an NVMe SSD Gets Too Hot?

An excessively high NVMe SSD temperature can cause the drive to reduce its own performance through thermal throttling.

Thermal throttling is a protective mechanism. Instead of continuing at full speed while temperature rises, the SSD controller reduces performance to lower heat output and keep the hardware within its operating limits.

This can appear as:

• Falling read or write speeds during sustained transfers
• Benchmark performance dropping after repeated runs
• Longer transfer times once the drive has been heavily loaded
• Performance recovering after the SSD has had time to cool

Importantly, there is no single temperature at which every NVMe SSD begins throttling.

Samsung specifies an operating temperature of 0°C to 70°C for its 990 PRO, while Kingston documents an 80°C thermal-throttling point for some of its NVMe SSDs. The correct limit therefore depends on the individual drive.

If you are concerned about NVMe SSD overheating, check the operating-temperature specification and monitoring software provided by the SSD manufacturer rather than relying on one universal temperature figure.

SSD With Heatsink vs Without: What Changes?

The underlying SSD can be identical whether it is sold with or without an integrated heatsink. The important difference is how effectively heat can move away from the drive.

For example, Samsung sells its 990 PRO with an integrated slim heatsink intended to control temperature and reduce performance loss from overheating.

Meanwhile, some SSD manufacturers deliberately offer a bare version because many modern desktop motherboards already provide effective M.2 cooling.

When comparing internal SSD drives, check whether a drive includes its own cooling solution and whether your system already provides one before deciding which version is appropriate.

Motherboard M.2 Heatsink or SSD Heatsink?

If your motherboard already includes an M.2 SSD heatsink, you usually do not need to buy an SSD with another full heatsink fitted.

Many modern PC motherboards use metal M.2 covers with thermal pads underneath. Once installed correctly, the thermal pad transfers heat from the SSD to the metal surface, which then spreads and dissipates that heat.

Before installation, check:

• Which M.2 slots include heatsinks
• Whether the heatsink supports your SSD's length, such as M.2 2280
• Whether a protective film must be removed from the thermal pad
• Whether the SSD has a factory-fitted heatsink or heat spreader
• The motherboard manufacturer's installation instructions

Avoid automatically putting a motherboard M.2 cover over an SSD with a large integrated heatsink. The two parts may not fit together and excessive pressure could affect the drive or motherboard.

If you are installing several components during the same upgrade, check which RAM slots to use as well, since the correct slot arrangement depends on the number of memory modules installed.

Use the cooling arrangement recommended by the SSD and motherboard manufacturers.

Heat Spreader vs Heatsink: What's the Difference?

An SSD heat spreader and heatsink perform related jobs, but they are not necessarily the same thing.

A heat spreader is normally a relatively thin layer of thermally conductive material. Its main purpose is to spread concentrated heat across a larger area of the SSD.

A heatsink normally has greater mass or surface area, sometimes using fins or ridges to transfer that heat into the surrounding air more effectively.

Some SSDs come with thin factory-fitted graphene or aluminium heat spreaders rather than large heatsinks. These should not automatically be removed.

For example, Kingston specifically recommends fitting a compatible third-party heatsink on top of the graphene-aluminium heat spreader used on its FURY Renegade G5 rather than removing it.

What Do SSD Thermal Pads Actually Do?

SSD thermal pads fill the small gap between heat-producing components and the metal heatsink.

Without proper contact, heat transfer is much less effective. A thermal pad conforms to the surfaces on both sides, helping conduct heat from the SSD into the cooling structure.

Correct installation matters. A pad that is too thin may not make proper contact, while one that is excessively thick can create unwanted pressure when the heatsink is tightened.

When using a motherboard or aftermarket heatsink:

1. Use the thermal pad supplied or recommended for that heatsink.
2. Remove any protective plastic film from the pad before fitting the heatsink.
3. Position it according to the manufacturer's instructions.
4. Do not stack additional pads unnecessarily.
5. Avoid overtightening the heatsink or M.2 mounting screw.

Thermal pads should improve contact, not force the SSD against the motherboard.

Does Better PC Airflow Cool an NVMe SSD?

Yes. A heatsink can only move heat effectively if that heat has somewhere to go.

Good case airflow continuously replaces warmer internal air with cooler air from outside the system. This helps the SSD heatsink, graphics card, processor, motherboard power delivery and other components release heat more efficiently.

Poor airflow can make SSD cooling less effective, particularly when an M.2 slot sits close to a powerful graphics card.

If several components in your desktop are running warmer than expected, improving the overall airflow may make more sense than treating the SSD in isolation. Correctly positioned PC cooling fans can help move fresh air through the case and exhaust accumulated heat.

Also check for:

• Dust blocking intake filters
• Cables obstructing front-to-back airflow
• A graphics card exhausting heat towards the M.2 area
• Insufficient intake or exhaust ventilation
• A PC positioned inside a confined desk space

Better airflow can reduce M.2 SSD temperature while improving conditions for several other components at the same time.

How to Install an NVMe SSD Heatsink Correctly

The exact NVMe heatsink installation process varies between SSDs, motherboards and aftermarket cooling products, so always use the relevant manufacturer instructions.

The general process for a desktop system is:

1. Check Compatibility First

Confirm the SSD form factor, usually M.2 2280 for desktop NVMe drives, and make sure the heatsink physically fits the motherboard slot.

Check clearance around the graphics card and other components as well.

2. Shut the PC Down

Turn the computer off completely, disconnect power and follow appropriate anti-static precautions before touching internal hardware.

3. Check Existing SSD Cooling

If the SSD already has an integrated heatsink, do not automatically add another.

If the motherboard has its own M.2 heatsink, determine whether it is designed to be used with the bare version of your SSD.

4. Prepare the Thermal Pad

Remove the protective film from the thermal pad where instructed. Do not remove the SSD's own label or factory heat spreader unless its manufacturer specifically requires this.

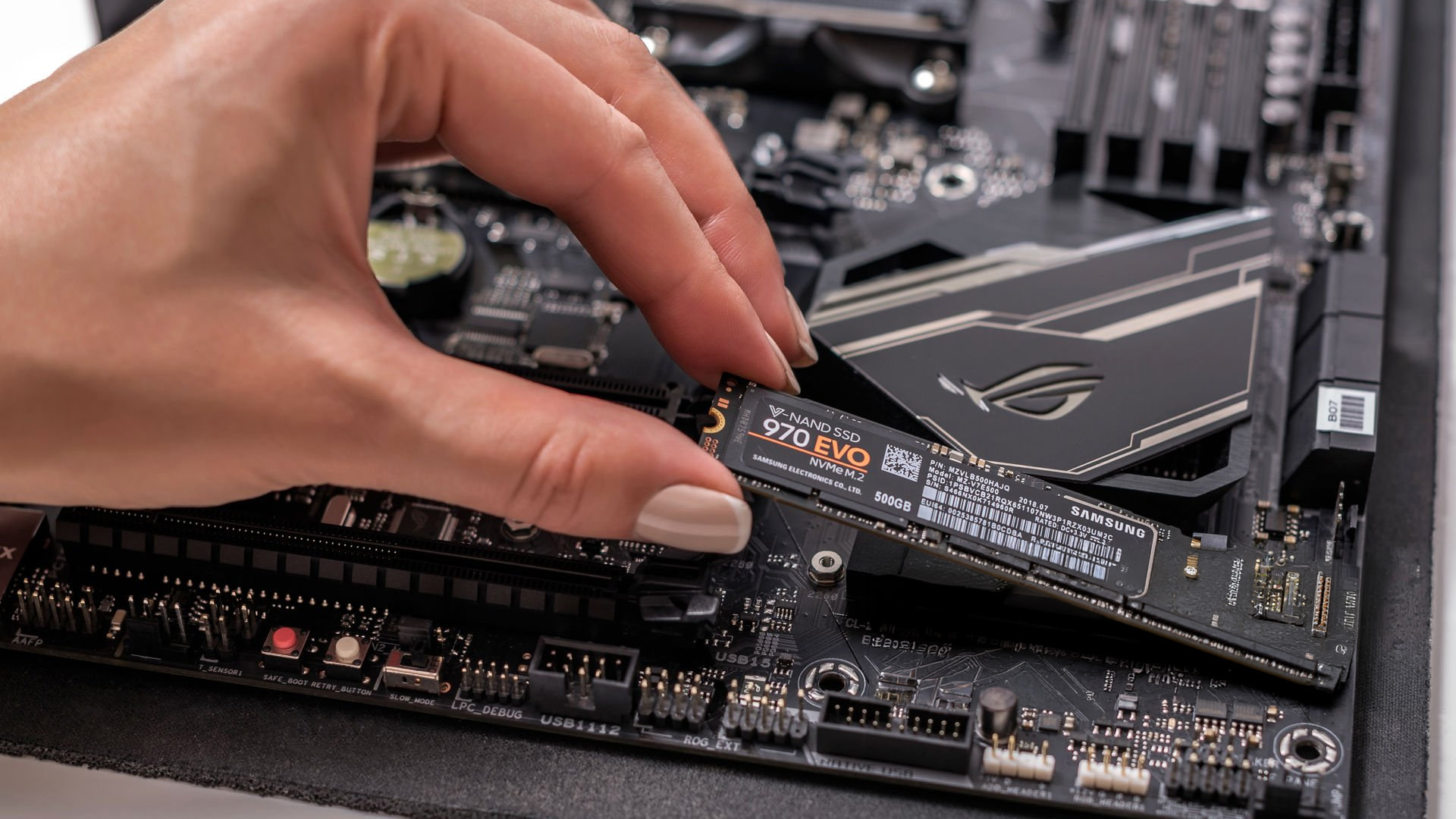

5. Install the SSD

Insert the NVMe drive into the correct M.2 slot at the angle specified by the motherboard manufacturer, lower it into position and secure it using the supplied mounting mechanism.

6. Fit the Heatsink

Position the heatsink so the thermal pad makes proper contact with the SSD, then secure it according to the motherboard or heatsink instructions.

It should be firmly fitted without excessive force.

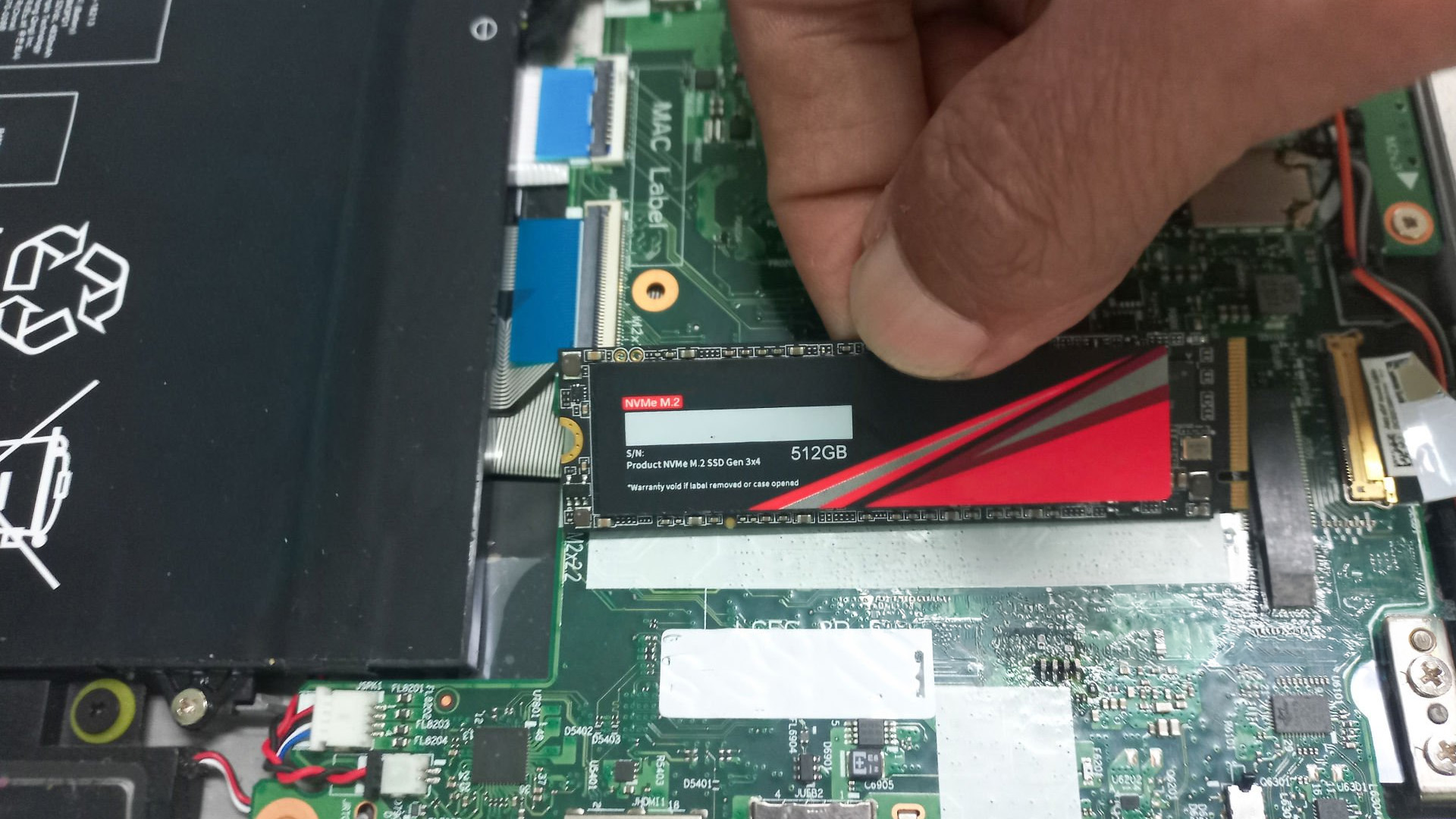

Do Laptops Need an NVMe SSD Heatsink?

Laptop SSD cooling needs to be treated differently from desktop cooling because physical space is much more restricted.

Some laptops use:

• Thin thermal pads
• Metal SSD shields
• Heat spreaders
• Contact with the chassis
• Dedicated internal cooling structures

A desktop-style heatsink may simply be too tall to fit beneath the laptop's bottom cover.

Before upgrading a laptop, check its service documentation for the supported M.2 dimensions and cooling arrangement. If the original SSD uses a thermal pad or metal shield, the replacement drive may need to use the same system.

Buying the heatsink version of an SSD is therefore not automatically better for a laptop.

Does a PS5 NVMe SSD Need a Heatsink?

Yes. The PS5 is a specific case where effective heat dissipation is part of Sony's requirements for an M.2 storage upgrade.

Sony states that a compatible M.2 NVMe SSD must use a cooling structure such as a heatsink, heat-transfer sheet or both. The complete drive and cooling mechanism must also remain within Sony's specified dimensions.

This means you can use either:

• A compatible SSD with an integrated heatsink, or
• A compatible bare SSD fitted with an appropriate cooling solution

Sony also advises against adding another heatsink to an SSD that already has an integrated one.

How Do You Know If Your SSD Is Actually Overheating?

High temperature and poor SSD performance are not automatically the same problem.

Start by monitoring the drive through the software provided by its manufacturer where available. Check the reported temperature while the SSD is performing the workload that normally causes the slowdown.

Thermal throttling becomes a stronger possibility if:

1. The SSD temperature approaches its specified thermal limit.
2. Transfer performance falls as the drive gets hotter.
3. Performance returns after the SSD cools.
4. Improved cooling reduces or eliminates the slowdown.

Do not assume every drop in write speed is caused by heat.

SSD performance can also decrease after a drive's high-speed write cache becomes exhausted. Other possible causes include limited PCIe bandwidth, a nearly full drive, background activity or using an M.2 slot with different interface capabilities.
If you are investigating wider system performance at the same time, it is also worth checking why RAM can run below its advertised speed, particularly after a memory upgrade or BIOS change.

Checking temperature alongside performance helps separate NVMe SSD overheating from other storage bottlenecks.

So, Is an NVMe SSD Heatsink Necessary?

An NVMe SSD heatsink is not mandatory for every PC or every drive. Efficient SSDs operating under lighter workloads can often run correctly without a dedicated heatsink, especially where the motherboard or system already provides suitable cooling.

Cooling becomes more important with high-performance NVMe drives, sustained transfers, demanding professional workloads and systems with restricted airflow. Some current PCIe 5.0 SSDs are also specifically designed to use either their factory heatsink or the heatsink supplied by the motherboard.

If the SSD remains within its specified operating range and maintains consistent performance, adding a larger heatsink is unlikely to provide a meaningful benefit. If temperatures reach the drive's thermal limits and performance begins to throttle, improving SSD cooling can help it sustain the performance it was designed to deliver.

Frequently Asked Questions

Can you use an NVMe SSD without a heatsink?

Yes. Many NVMe SSDs can operate without a separate heatsink when sufficient cooling and airflow are available. However, high-performance models may recommend or require additional cooling for sustained peak performance, so check the manufacturer's specification.

Does an SSD heatsink improve gaming performance?

Usually not directly. An SSD heatsink does not increase the drive's maximum rated performance or automatically increase frame rates. Its main benefit is helping prevent thermal throttling when the SSD becomes hot during sustained workloads.

If you are comparing components specifically for gaming, understanding how DDR5 CL30 compares with CL36 for gaming can also help you judge whether memory latency is likely to make a meaningful difference to your setup.

Do all PCIe 5.0 SSDs need heatsinks?

No universal rule applies to every PCIe 5.0 SSD. Power consumption and controller efficiency vary between models. However, many high-performance Gen5 drives require or strongly benefit from appropriate cooling, particularly when operating at sustained maximum speeds.

Should I remove the sticker before fitting an M.2 heatsink?

Not unless the SSD manufacturer specifically tells you to. Some labels and factory heat spreaders form part of the drive's thermal design. Removing them unnecessarily may also create warranty or installation issues.

Can I use a motherboard heatsink with an SSD that already has one?

Usually, you should use one cooling solution rather than trying to stack a motherboard M.2 cover over a large factory-fitted heatsink. Check the SSD and motherboard instructions because clearance and cooling designs differ between products.
