WDM Media Converter

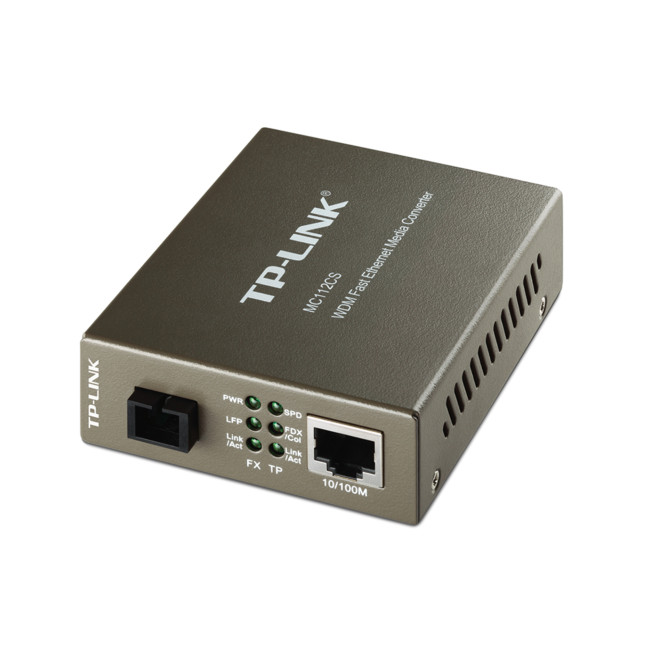

The MC112CS is a media
converter designed to convert 100BASE-FX fibre to 100Base-TX copper
media or vice versa. Adopting WDM technology, MC112CS takes only one
fibre cable to transmit and receive data, which will save half cabling
cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX
standards, the MC112CS is designed for use with single-mode fibre
cable utilising the SC-Type connector. The MC112CS supports longwave
(LX) laser specification at a full wire speed forwarding rate. It
works at 1310nm on transferring data and at 1550nm on receiving data.
So the other end device to cooperate with the MC112CS should work at
1550nm on transferring data and at 1310nm on receiving data. Another
TP-LINKs media converter MC111CS is just one of the examples to
cooperate with MC112CS.
Other features of this
module include the ability to be used as a stand alone device (no
chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of

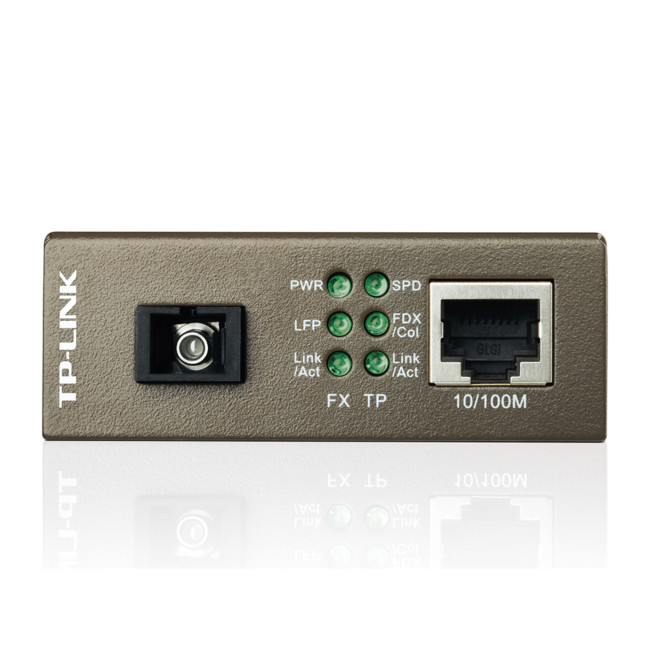

duplex mode on TX port, and front panel status LEDs. The MC112CS will
transmit at extended fiber optic distances utilising single-mode fiber
up to 20 kilometres.
Features
Complies with 802.3u
10/100Base-TX, 100Base-FX standards.
Link Fault Passthrough and Far End Fault minimise the loss caused by
link failure timely.
Adopts WDM technology, transmitting and receiving data on one single
fibre.
