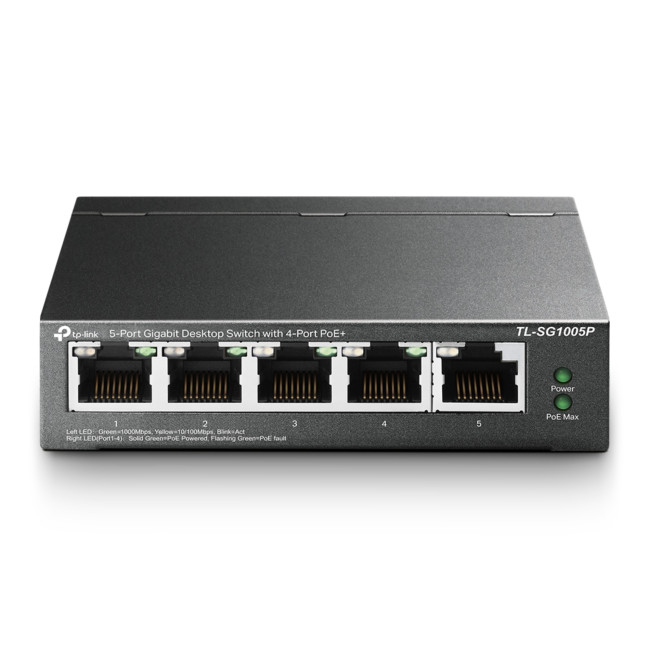

TP-LINK 5-Port Gigabit
Desktop Switch with PoE Support
TL-SG1005P is a 5
10/100/1000Mbps ports unmanaged switch that requires no configuration
and provides 4 PoE (Power over Ethernet) ports. It can automatically
detect and supply power with all IEEE 802.3af compliant Powered Devices
(PDs). In this situation, the electrical power is transmitted along with
data in one single cable allowing you to expand your network to where
there are no power lines or outlets, where you wish to fix devices such
as APs, IP Cameras or IP Phones, etc.

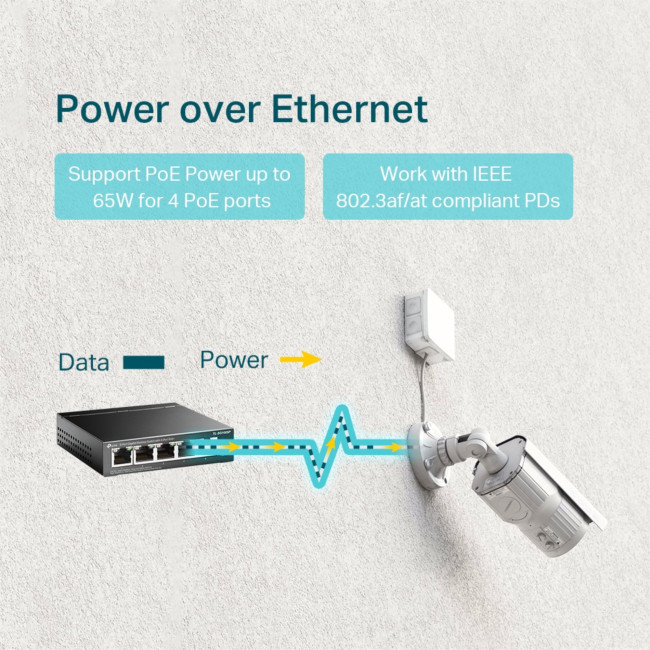

Power over Ethernet
4 of the 5
Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support
Power over Ethernet (PoE) function. These PoE ports can automatically
detect and supply power with those IEEE 802.3af compliant Powered
Devices (PDs).

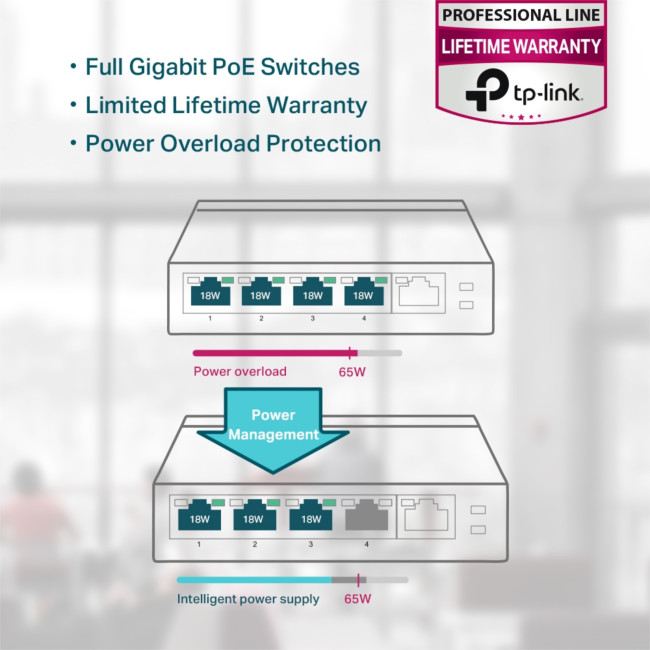

Overload Arrangement
TL-SG1005P has the
priority function which will help protect the system when the system
power is overloaded. If all PoE PDs power consumption is >= 56W, a
priority will be arranged among the PoE ports, then the system will cut
off the power of the lowest-priority port.
Port Priority Function
Priority (Port 1=Port
2=Port 3>Port 4): This function will help to ensure the normal operation
of the system, it means Port 4 will be cut off when all total PoE PDs
power consumption exceed 56W. For an example, Port 1, 2 and 4 is using
15.4W (maximum power for per port is 15.4W); the system power is 46.2W
in total. If there is an additional PD inserted to Port 3 with 10W, and
then the system will cut off the power of Port 4 because of the
overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will
use 10W, no power will be supplied to Port 4.

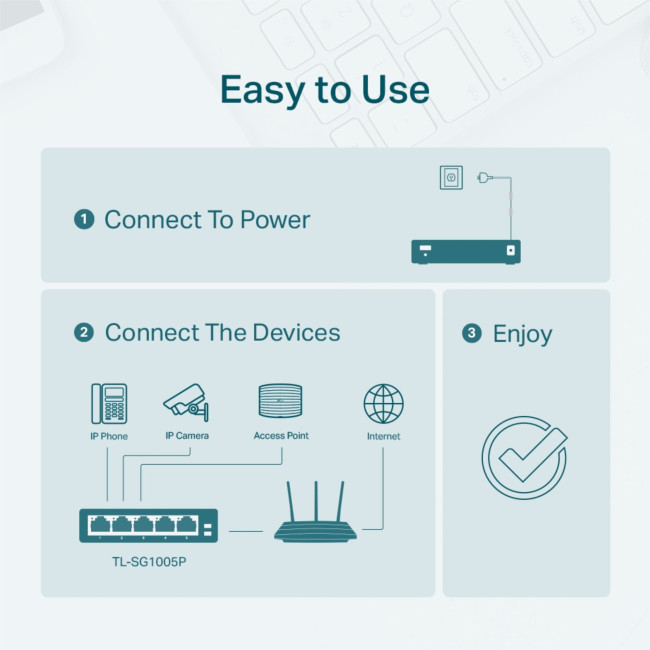

Easy To Use
TL-SG1005P is easy to
install and use. It requires no configuration and installation. With
desktop design, outstanding performance and quality, the TP-Links
TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal
choice for expanding your home or office network.
Features
5 10/100/1000Mbps RJ45
ports.
With four PoE ports, transfers data and power on one single cable.
Working with IEEE 802.3af compliant PDs, expands home and office network.
802.1p/DSCP QoS enable smooth latency-sensitive traffic.
Supports PoE Power up to 15.4W for each PoE port.
Supports PoE Power up to 56W for all PoE ports.
Requires no configuration and installation.
