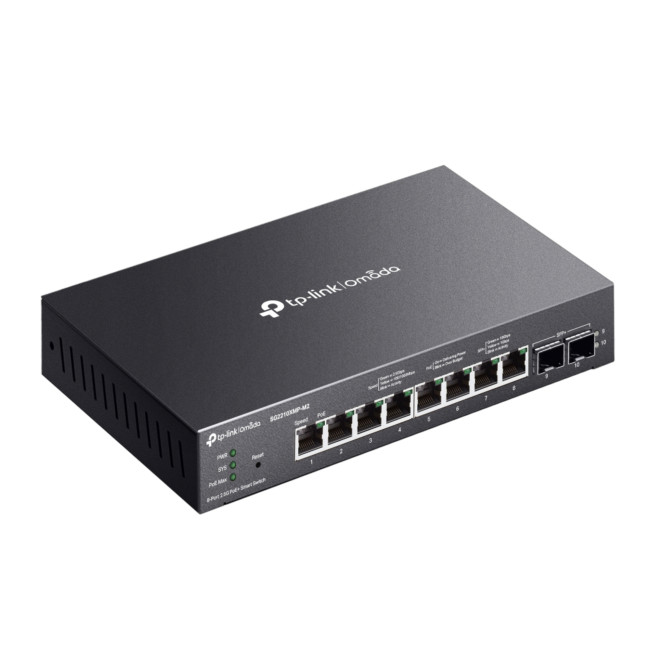

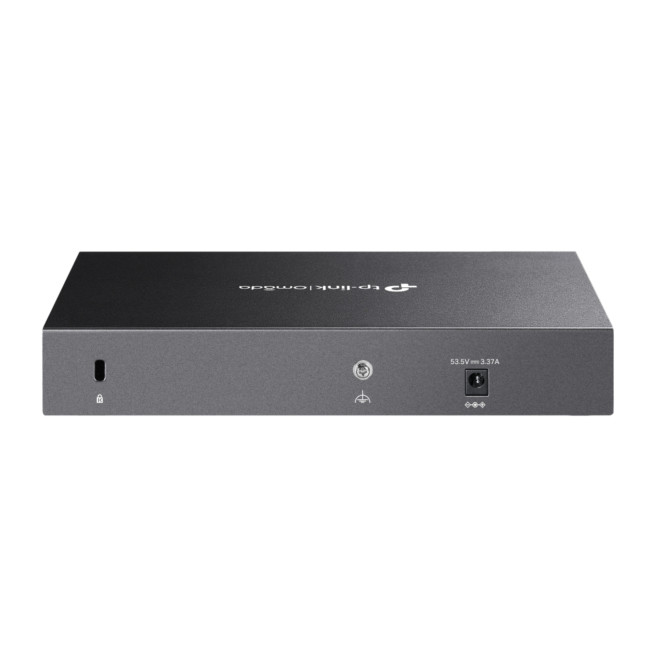

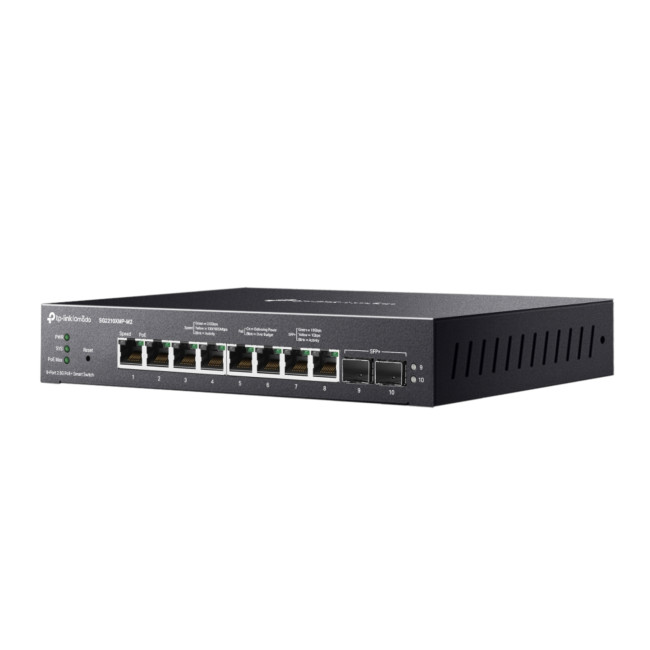

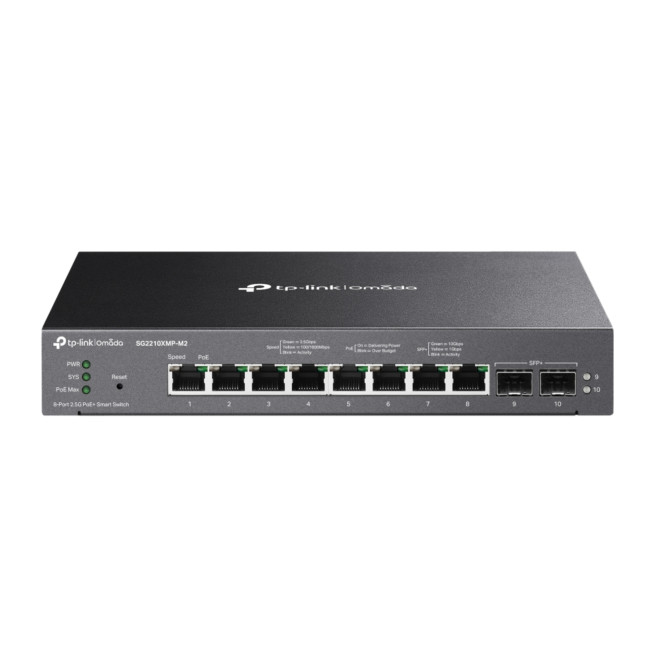

tp-link SG2210XMP-M2 Omada
Smart Switch
SG2210XMP-M2 is a 2.5G
multi-gigabit switch with eight 2.5G PoE+ ports and two 10G uplink
ports, ideal for connecting multi-gigabit WiFi 7/6 access points. Up to
160 W PoE budget, fanless design with compact and durable metal casing,
and desktop/wall-mounting design make it suited for different
environments. High-performance static routing, advanced security
features, a selection of Layer 2 management options, and integration
into the Omada SDN (Software-Defined Networking) meet the demand of
reliable business networking.
2.5G PoE+ Ports and 10G
Uplink
Eight IEEE
802.3at/af-compliant PoE ports supply up to 160 W total power to 802.3at
and 802.3af devices. Set up wireless access points, surveillance
cameras, IP phones, and other PoE devices quickly and easily without the
hassle and cost of installing power cabling. Two 10 Gbps SFP+ slots
deliver non-blocking performance and minimal latency, ensuring rapid,
dependable connections to servers and other switches.
Secure Networking
Security features include
IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and
DHCP Snooping to defend against a range of network threats. An
integrated list of common DoS attacks is available, making it easier
than ever to prevent them.
In addition, the Access Control Lists (ACL) feature restricts access to
sensitive network resources by denying packets based on source and
destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs.
Users' network access can be controlled via 802.1X authentication, which
works with a RADIUS/TACACS+ server to grant access only when valid user
credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP,
and UDP identifiers, our QoS feature ensures seamless voice and video
transmission-even when bandwidth is in short supply.
Abundant L2 and L2+
Feature
SG2210XMP-M2 supports a
complete lineup of L2 features, including Static Routing, DHCP Server,
DHCP Relay, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation
Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping
ensures the switch intelligently forwards multicast streams to only the
appropriate subscribers, cutting out unnecessary traffic, while IGMP
throttling and filtering restrict each subscriber on a port level to
prevent unauthorized multicast access. Static Routing, an L2+ feature,
is a simple way of segmenting the network and internally routing traffic
through the switch for improved efficiency.
Omada SDN Integration
Integration into the Omada
SDN system brings centralized cloud management and a series of
management features, such as Zero-Touch Provisioning (ZTP) and Abnormal
Event Warnings. Omada's Software Defined Networking (SDN) platform
integrates network devices, including access points, switches, and
routers, providing 100% centralized cloud management.
Apart from the ability to be centrally managed via Omada SDN
controllers, SG2210XMP-M2 simplifies management via an intuitive
web-based Graphical User Interface (GUI) or an industry-standard Command
Line Interface (CLI). For both management methods, traffic is protected
through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable
the switch to be polled for valuable status information and to send
traps for abnormal events.
Features
8× 2.5 Gbps
802.3at/af-compliant PoE+ ports.
2× 10G SFP+ Slots.
160 W total PoE budget with up to 30 W PoE output per port.
Centralized cloud management via web or the Omada app.
Supports standalone management.
Static Routing.
Fanless design for quiet operation.

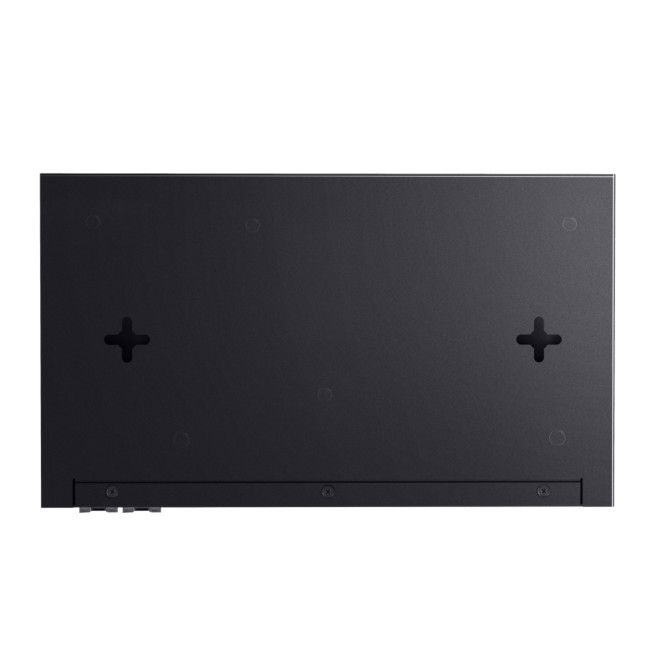

Desktop/Wall-Mounting.
