Condition |
Brand New & Sealed. Official UK Stock. Next Working Day Delivery (M-F.) |
Warranty |
1 Year |
-
-

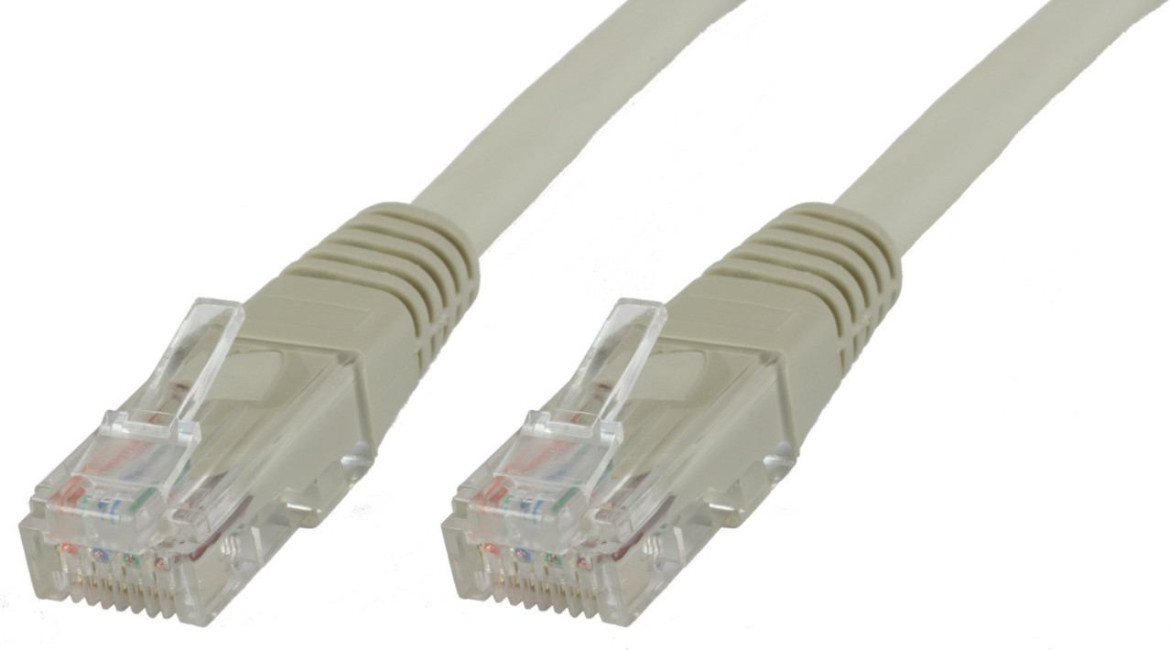

Twisted Pair Patch
Cable with RJ45 connectors and Test Report (100% Tested)
-
-
Cat.6 UTP PIMF, LSZH
-
-
Integrated snagless
connector for latch protection
-
-
Gold plated pins for
better conductivity and elimination of signal loss
-
-
1 year warranty
The gold-plated contacts
ensure reliable, corrosion-free connections over extensive periods of
time. A robust snagless strain relief design prevents damage to the
connector latch during installation and removal.
The halogen-free sheath
material of the LSZH cable makes the product suitable for use in public
spaces with its low smoke emission and elimination of toxic halogen
emissions.
Connectors
-
Connector A: RJ45 Male
-
Connector B: RJ45 Male
-
Housing Material:
Polycarbonate
-
Connector Plating: Brass
-
Pin Construction: Copper
Alloy
-
Pin Plating: Gold plated
Cable
Construction
-
Length: 3m (9.84ft)
-
Colour: Black
-
Type: Cat.6
-
Jacket Diameter: 6.2mm
(0.24in)
-
Jacket Material: LSZH
-
Conductor Material:
Copper
-
Conductor Gauge: 26AWG
-
Specifications
-
Supported Bandwidth:
500MHz
-
Nominal Attenuation:
67.86dB/100m @ 500MHz
-
Minimum Bend Radius:
18.6mm (0.74in)
-
Operating Temperature:
-25°C - 60°C (-43F - 140°F
-
Storage Temperature:
-25°C - 60°C (-43F - 140°F)
