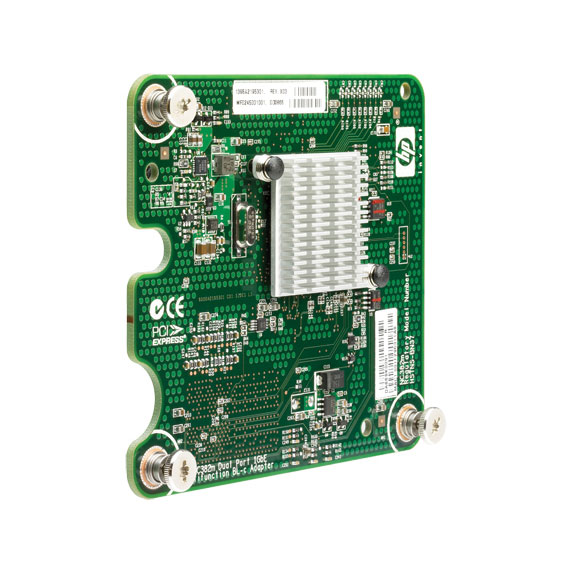

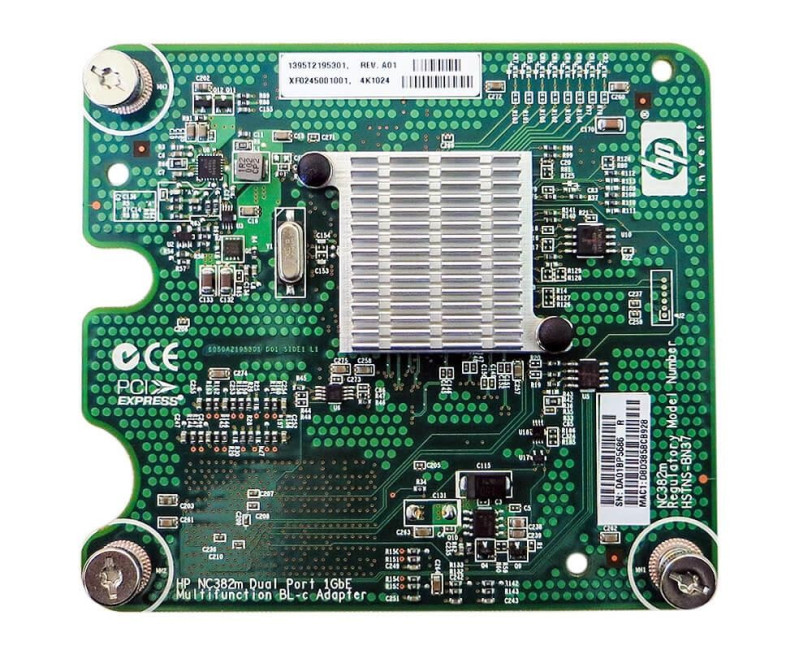

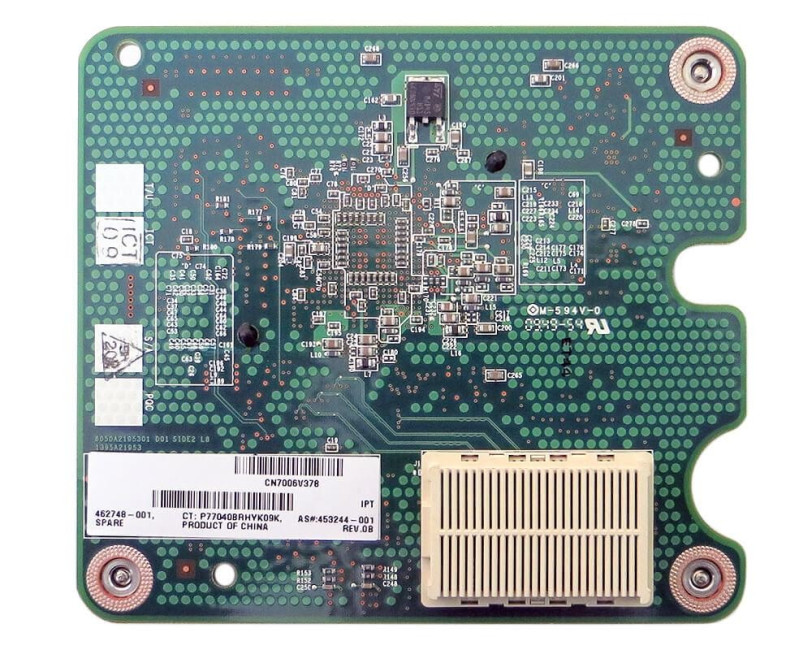

HP 453246-B21 NC382m PCI Express Dual Port Multifunction Gigabit Server Adapter

Features:

·         Data transfer rate: 10,000 Mbps

·         Ethernet LAN connection

·         Connectivity technology: wired

·         Host interface: PCI-E

·         Ports quantity: two



The HP NC382m is a Multifunction adapter that combines standard Gigabit Ethernet networking, TCP/IP offload engine (TOE) acceleration for Microsoft Windows, and iSCSI boot into a single mezzanine card. This x4 PCI Express dual-port adapter is supported on all HP BladeSystem ProLiant c-Class servers in all mezzanine slots.

Multiple adapters can be installed per server. In addition to its Multifunction capabilities, the NC382m adapter ships with advanced server features that ProLiant customers have come to expect, such as support for failover and load balancing, TCP/IP checksum offloading, large send offloading, PXE, jumbo frames, VLAN tagging, QoS, and much more.

HP NC382m PCI Express Dual Port Multifunction Gigabit Server Adapter. Connectivity technology: Wired, Host interface: PCI-E, Interface: Ethernet. Data transfer rate (max): 10000 Mbit/s, Supported data transfer rates: 10/100/1000 Mbps. Chipset: Broadcom 5709S, Cabling technology: 10/100/1000BaseT(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Width: 36.5 mm, Depth: 22.2 mm, Height: 287.2 mm. Dimensions (WxDxH): 3.65 x 2.22 x 28.72 mm.
