Ultra-Wide OLED Gaming
Display

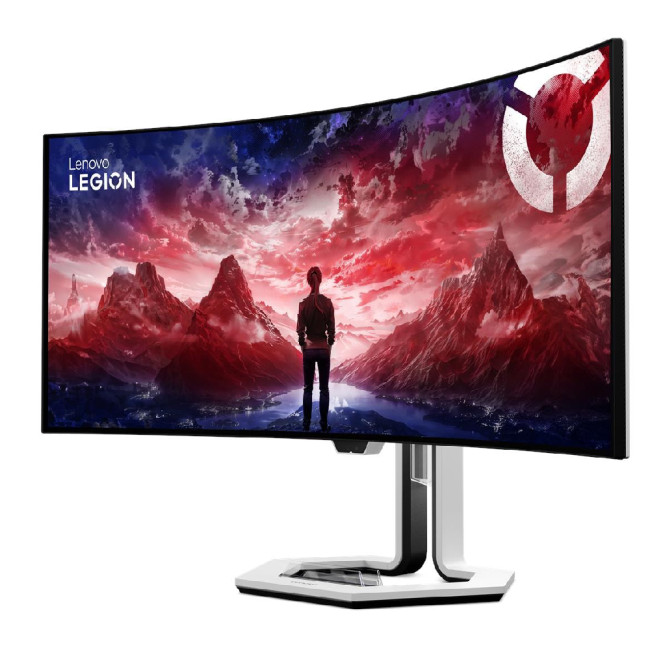

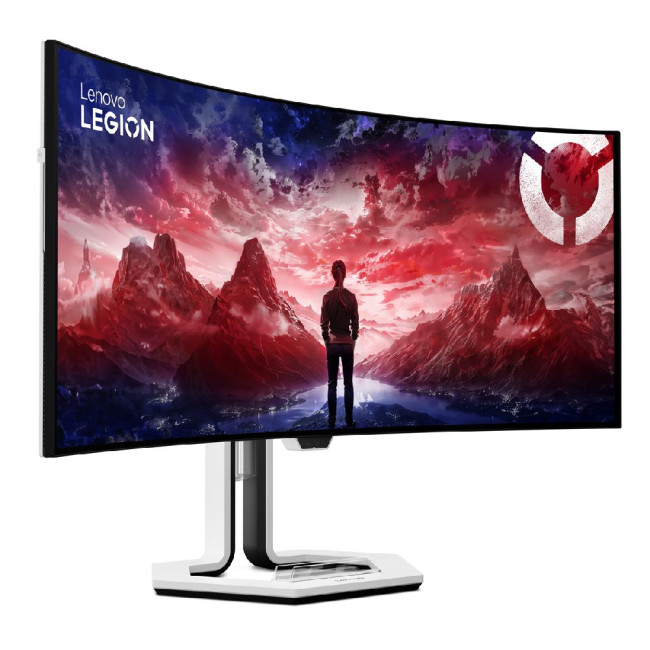

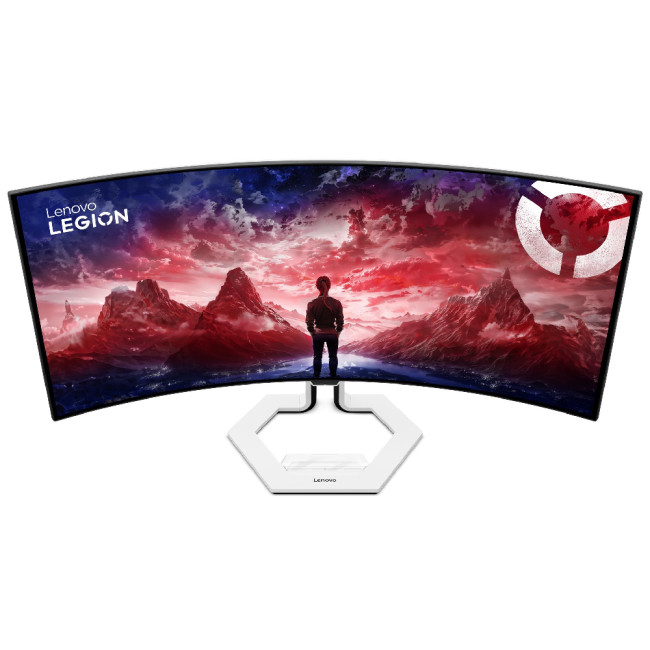

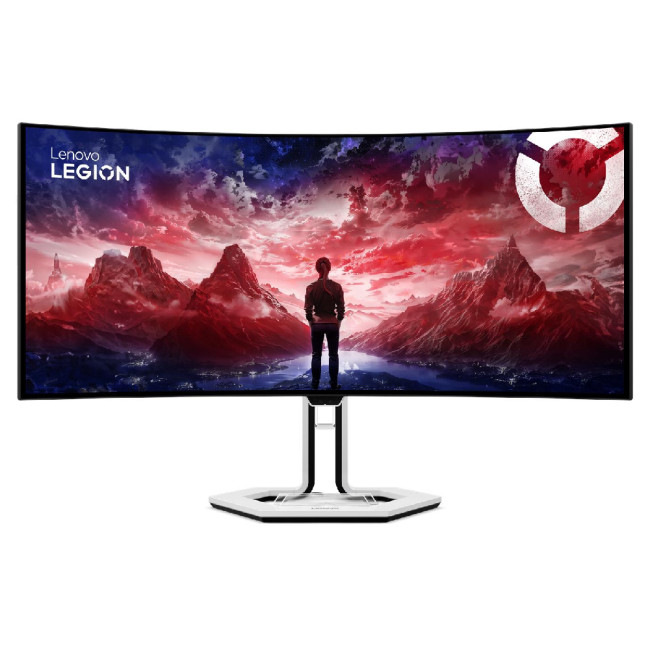

The Lenovo Legion Pro
34WD-10 is a 34-inch ultra-wide gaming monitor designed around an OLED
panel with a 3440 x 1440 WQHD resolution and a 21:9 aspect ratio. Its
800R curvature brings the edges of the screen closer to the users field
of view, creating a broad viewing area that can be useful for games,
entertainment and multitasking. The monitor supports a 240Hz refresh
rate and an extremely fast 0.03ms response time, providing the
specifications required for smooth presentation during fast-moving
content. The OLED panel offers a 1,500,000:1 typical contrast ratio and
178-degree horizontal and vertical viewing angles. It also features an
anti-glare surface. The display has a typical brightness of 275 cd/m²,
with maximum brightness of 450 cd/m² and peak brightness reaching 1300
cd/m² under specified HDR conditions.
Colour and HDR Performance
The display is designed to
provide a wide range of colours and detailed image reproduction across
gaming and other visual content. Lenovo specifies 99% sRGB coverage and
98.5% DCI-P3 coverage, with support for 1.07 billion colours and True
10-bit colour depth. Factory calibration is included, with an average
Delta E of less than 2 in the sRGB colour space, helping provide
consistent colour presentation from the display. The monitor also
supports DisplayHDR True Black 400 for compatible high-dynamic-range
content, while the OLED panel's high contrast ratio allows darker areas
of images to be displayed distinctly. For gaming, the monitor supports
AMD FreeSync Premium Pro, VESA Adaptive Sync and NVIDIA G-SYNC
Compatible technologies. VESA ClearMR 13000 certification is also
included. These specifications make the screen suitable for users who
want a large, wide display with high refresh performance and broad
colour coverage.
Connectivity and USB-C
Power
The Legion Pro 34WD-10
provides a wide selection of connections for gaming systems, laptops and
peripheral devices. Video inputs include two HDMI 2.1 ports, one of
which supports eARC, a DisplayPort 1.4 connection and a USB-C port with
DisplayPort 1.4 Alt Mode. The USB-C connection also provides up to 140W
of power delivery, allowing a compatible laptop to receive power and
display output through a single cable. The monitor incorporates a USB
hub with one USB-B upstream port, one USB-C upstream connection, three
USB-A downstream ports and two additional USB-C downstream ports. A
2.5Gb Ethernet RJ-45 connection is also included, providing a wired
networking option. This combination allows the monitor to act as a
central connection point for compatible computers, displays and
accessories while reducing the number of separate cables required on a
desk.
Multitasking and Gaming
Features
The monitor includes
several functions designed to support both gaming and multitasking.
Lenovos True Split feature allows the large ultra-wide display area to
be divided for working with multiple sources or applications, while
Picture-in-Picture and Picture-by-Picture modes provide additional ways
to display content from different inputs. A built-in KVM switch can help
users control compatible computers using the same connected keyboard and
mouse, making the monitor practical for setups involving more than one
system. The display also incorporates automatic ambient brightness
adjustment and a human detection sensor. The latter can detect when a
user moves away from the screen and adjust the display accordingly.
Integrated stereo speakers provide 2 x 5W output and are certified by
Waves MaxxAudio. RGB lighting is positioned along the lower front bezel
and can be customised through Lenovos display software.
Adjustable and Ergonomic
Design
The Legion Pro 34WD-10
uses a Raven Black design with narrow 1.5mm side, top and bottom bezels
and a substantial curved display area. Its stand provides tilt
adjustment from -5° to 22°, swivel adjustment of up to 45° in either
direction and a height adjustment range of 135mm. The monitor can also
be mounted using a standard 100 x 100mm VESA mounting interface, giving
users the option of using an alternative arm or wall-mounting solution.
The assembled monitor measures approximately 789.6mm wide, 262.9mm deep
and up to 577.5mm high when the stand is at its highest position.
Without the stand, the display head weighs approximately 6.4kg, while
the complete monitor weighs around 8.7kg. Cable management and a
headphone hook are integrated into the design, helping keep accessories
and cables organised around the workstation.
