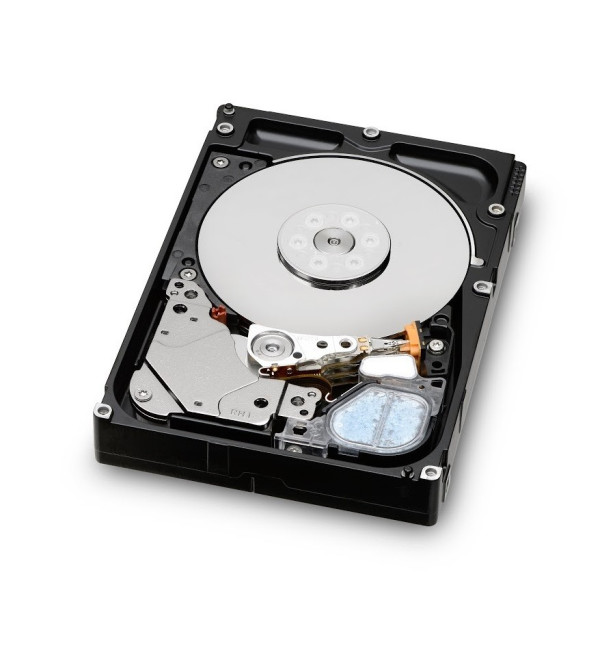

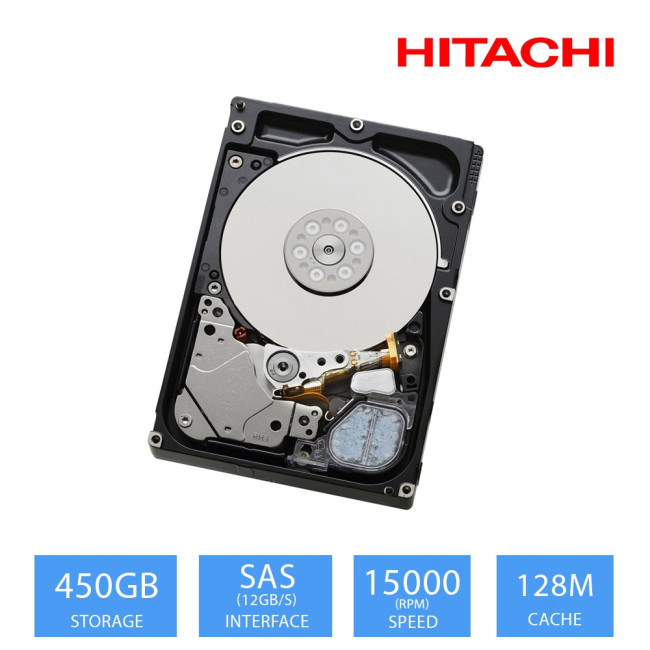

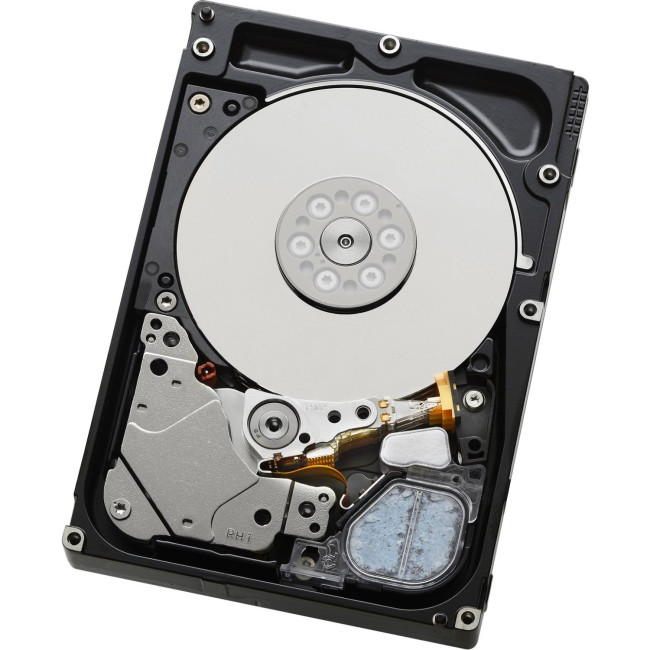

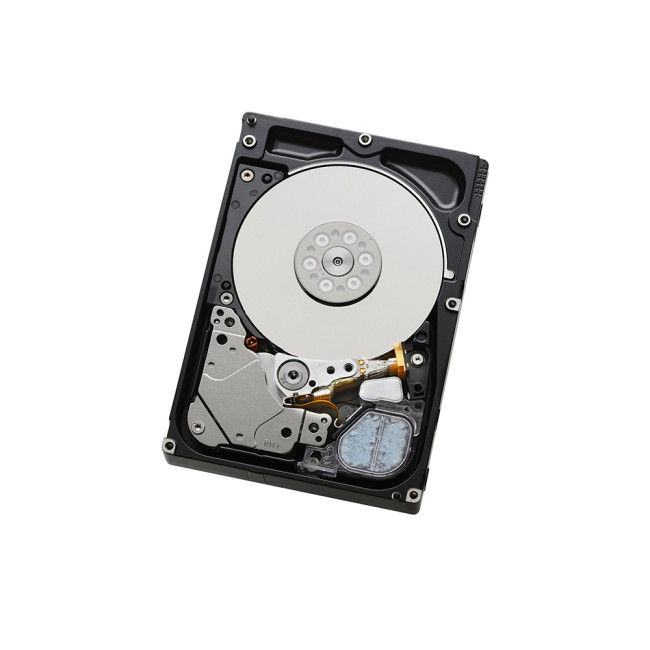

Hitachi Ultrastar C15K600 450GB SAS 12Gb/s 15000 RPM 128M Cache 2.5" Hard Drive

Ultrastar C15K600
2.5-Inch SFF Enterprise 15K RPM Hard Disk Drives

Big Performance and Capacity in a Small Package
HGST delivers the worlds fastest hard disk drive in the Ultrastar® C15K600, a 15K RPM, 2.5-inch small form factor hard drive ideally suited for mission-critical data center and high performance computing environments. At 600GB, Ultrastar C15K600 provides double the capacity of current generation 2.5-inch 15K drives, and matches the highest capacity point of 3.5-inch 15K drives. This latest addition to the Ultrastar small form factor (SFF) family outperforms not only the competition but also legacy 3.5-inch 15K drives from HGST, achieving 38% faster sequential and 2.5X faster random write performance for faster data processing, while consuming half as much active and idle power

Best-in-class performance is achieved through several innovations, including media caching technology that provides a large caching mechanism for incoming data resulting in significantly enhanced write performance over solutions with limited NAND or flash-based non-volatile cache (NVC). The C15K600 is HGSTs first hard drive to leverage an industry-leading 12Gb/s Serial-Attached SCSI (SAS) interface enabling very high transfer rates between host and drive, supporting the performance and reliability required in the most demanding enterprise computing environments like online transaction processing (OLTP), big data analytics, multi-user applications and data warehousing.

Power and Density Efficiency
The compact size and power management innovations designed into the Ultrastar C15K600 enable high levels of power efficiency and translate into reduced power requirements and lower cooling costs, an ideal choice for enterprise data centers faced with space and power limitations. Compared to legacy 3.5-inch 15K drives, Ultrastar C15K600 consumes 70% less space yet provides up to 55% lower active power and 54% lower idle power requirements. HGST Advanced Power Management technology, with multi-state idle modes, uses industryrecognized standards for power optimization and can be pre-programmed or manually initiated in the system.

Enterprise Reliability and Data Security
The Ultrastar C15K600 offers the broadest range of security options and encryption options available from HGST, including Instant Secure Erase (ISE), Trusted Computing Group (TCG) enterprise SSC-compliant Self-Encrypting Drives (SED), and TCG enterprise SED with FIPS (Federal Information Processing Standard) 140-2 certification, Level 2, which provides data-at-rest and tamper evidence protection for the most stringent regulatory data security compliance requirements. Ultrastar C15K600 extends the companys longstanding tradition of reliability leadership with a 2M hour MTBF rating, an annualized failure rate (AFR) of 0.44%.

Highlights

·         15,000 RPM performance for Tier 0/1 applications

·         Capacities up to 600GB

·         Industry-leading 12Gb/s SAS moves more data quickly and reliably

·         Compared to 15K 3.5-inch HDDs:

o    2.5X faster random write performance

o    14% faster random read performance

o    38% faster sequential performance

o    54% lower active and idle power

o    70% smaller footprint

·         2M hours MTBF2 rating

·         128MB cache buffer manages data efficiency

·         Security & encryption models including ISE, TCG-SED & FIPS 140-2 certified TCG-SED

Applications / Environments

·         High Performance Computing (HPC) & other highperformance, mission-critical applications requiring 24x7 availability

·         Tier 0/1 enterprise-class servers and networked storage arrays

·         High reliability blade, pedestal and rack-mounted servers

·         Systems needing the highest levels of data security to meet compliance-driven requirements

·         Databases and intense Online Transaction Processing (OLTP)

·         Servers and storage arrays (DAS, SAN and NAS)

Features and Benefits

Performance

·         Feature/Function

o    15K RPM

o    SAS 12Gb/s

o    Media caching technology

o    Rotational Vibration Safeguard (RVS)

o    Workload detector technology

·         Benefits

o    Highest speed available for enterprise-class HDDs

o    Industrys fastest SAS interface for maximum throughput

o    Significantly enhanced over solutions with limited NAND or flash-based non-volatile cache (NVC)

o    Maintains optimum performance in multi-drive systems

o    Maximizes performance in multi-drive systems

Capacity

·         Feature/Function

o    Up to 600GB

·         Benefits

o    Double current 2.5-inch 15K drives and matches 3.5-inch 15K drives

Power Efficiency

·         Feature/Function

o    2.5-inch form factor

o    Advanced Power Management

·         Benefits

o    Consumes up to 55% less power than 3.5-inch HGST drives

o    Optimizes power consumption to lower data center energy usage and cooling costs

Reliability

·         Feature/Function

o    IDRC technology

o    RRO fields

o    End-to-end data protection (ANSI)

·         Benefits

o    Improves signal processing for more robust data integrity

o    Improves handling of repeatable run out to lower risk of data squeeze and write inhibit rate

o    Enhances error detection for optimal data integrity
