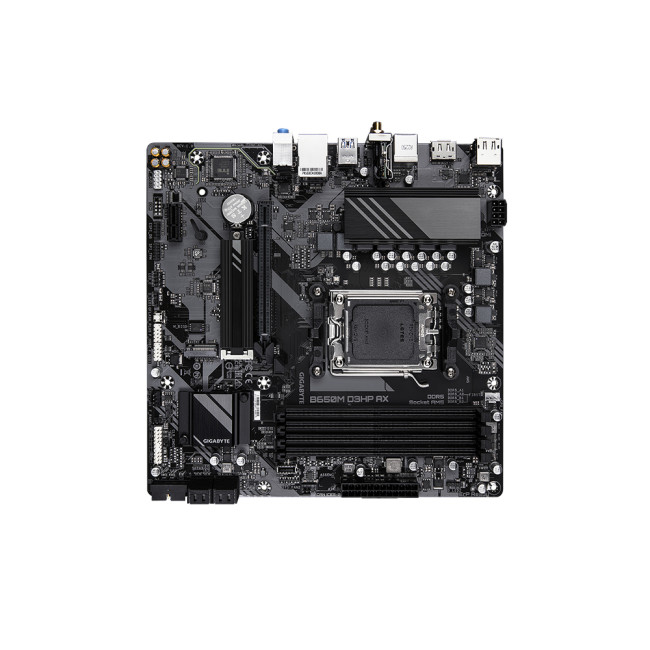

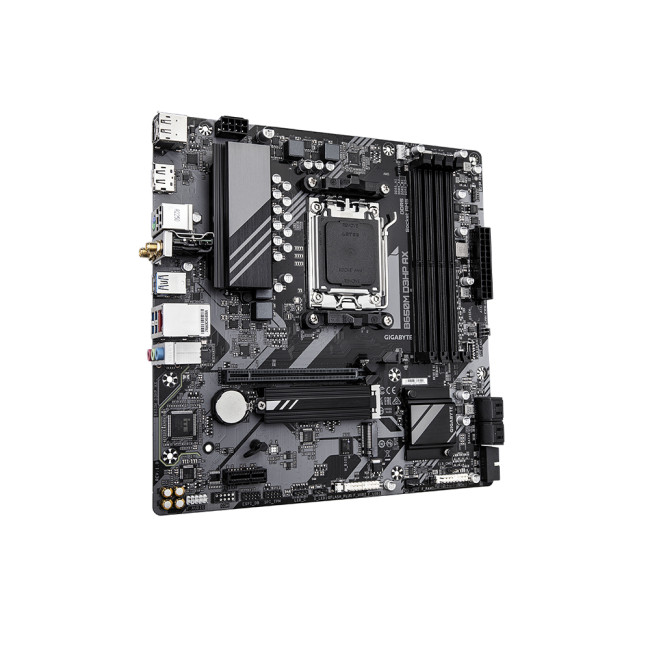

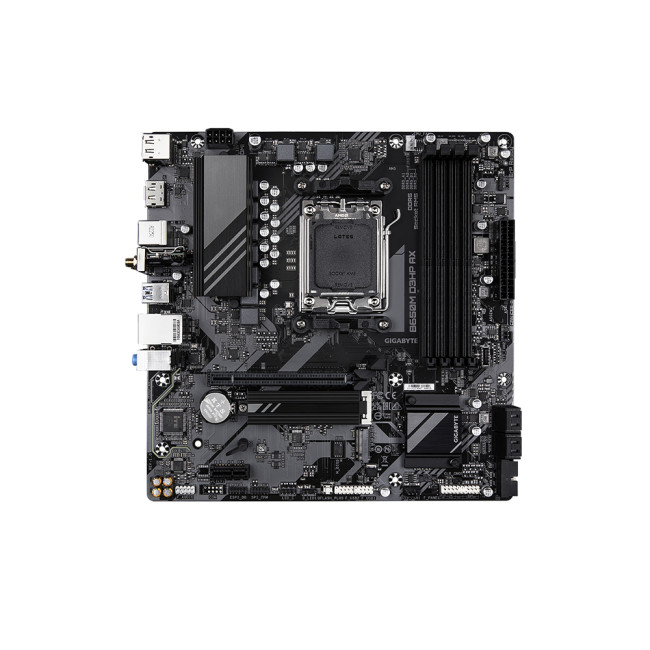

GIGABYTE B650M D3HP AX DDR5 micro ATX AM5 Motherboard

Begin your next build with confidence using the B650M D3HP AX AM5 Micro-ATX Motherboard from Gigabyte. The micro-ATX form factor works with smaller builds or leaves more room in larger builds. Either way, the B650M D3HP AX offers versatile compatibility for new and experienced builders alike.

The AMD B650 chipset and AM5 socket accepts AMD Ryzen 7000 series processors. Four dual-channel DDR5 RAM slots support up to 192GB of 7600 MT/s memory for robust multitasking. Store documents, applications, and more with four SATA III and two M.2 interfaces for drives. The PCIe 4.0 x16 slot supports an external GPU and there is an additional PCIe 3.0 x1 slot as well. Connect to the internet wirelessly using Wi-Fi 6E or with a wire using the 2.5 GbE Ethernet port. Connect to other devices using Bluetooth 5.3. The Realtek 7.1-channel HD audio provides stellar sound for connected devices.

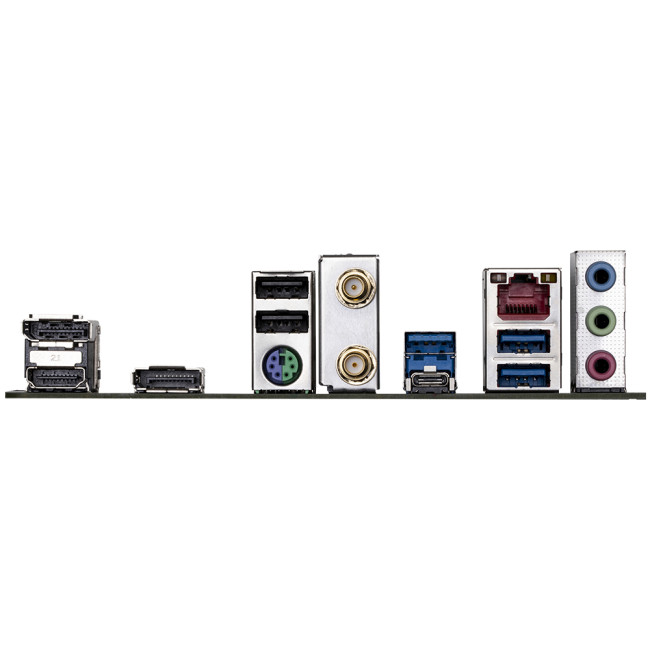

Rear USB Connectivity
There are several ways to connect accessories and peripherals to this motherboard using the rear panel. A USB-C 3.2 Gen 1 port and three USB-A 3.2 Gen 1 ports offer up to 5 Gb/s transfer speeds perfect for higher end drives and accessories. Two USB-A 2.0 ports and a PS/2 combo jack can be used for mice, keyboards, and more.
Display Connectivity
Two DisplayPort outputs support resolutions up to 3840 x 2160 at 144 Hz. A single HDMI port supports up to 4096 x 2160 resolution at 60 Hz.
Thermal Improvements
Smart Fan 6 ensures your computer maintains its performance while staying cool thanks to its unique cooling features. Users can define fan curves for multiple fan and pump headers based on temperature sensors across the board via the intuitive user interface.
