Eaton 9PX - Netpack - UPS Rack-Mountable / External - 3000 Watt - 3000 VA

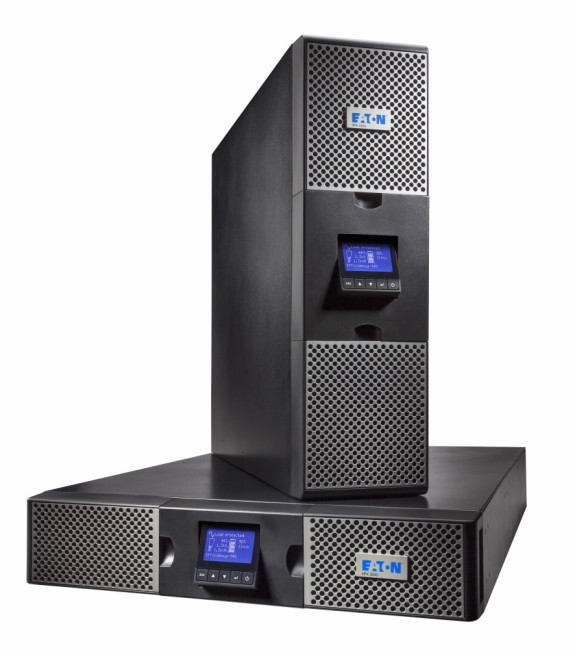

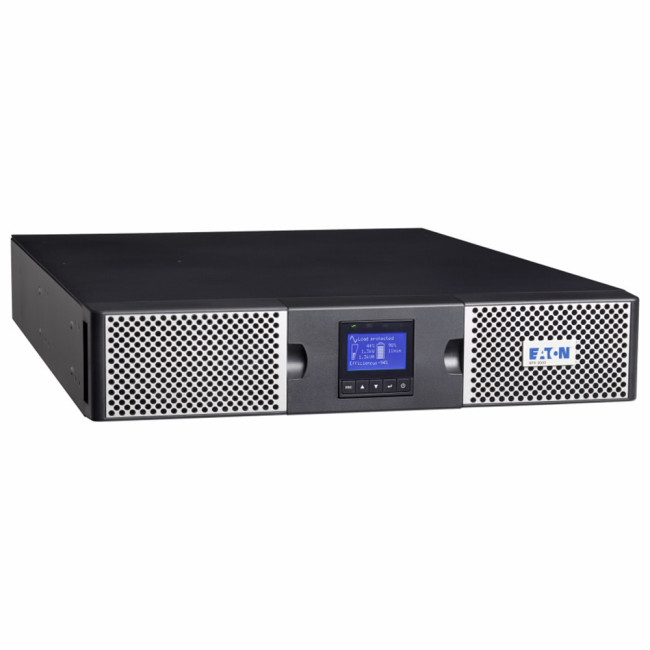

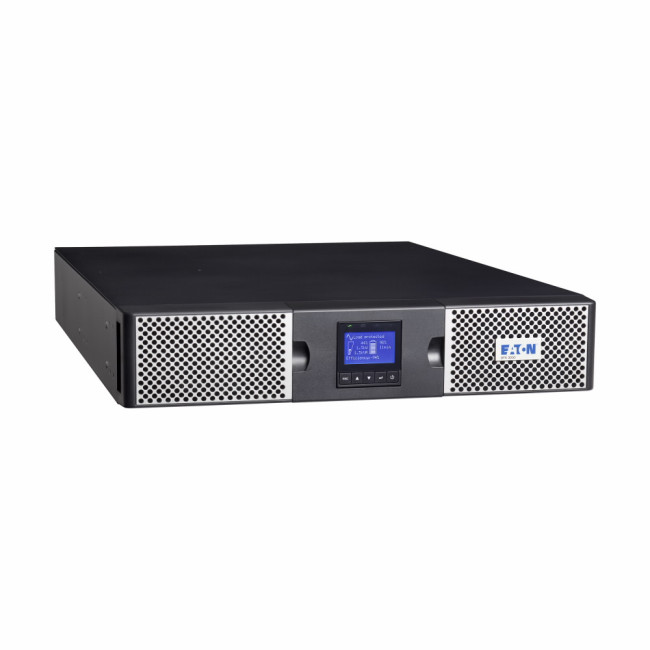

The Eaton 9PX 3000W RT3U
NetPack UPS is an online double conversion UPS that can be installed as
a floor standing tower UPS or within a 19inch server rack as a 3U high
rack mount system. The UPS is supplied with a Network Card fitted and
ready for connection to an Ethernet/IP network.
The 9PX system is rated at
unity power factor (VA=W) and the unit ratings are in Watts or kW. In
high efficiency mode the UPS can achieve 97.5% efficiency. The 9SX UPS
provides complete power protection and uninterruptible power. The UPS
includes Eatons Advanced Battery Management (ABM) technology including
a three-stage charging system to extend battery working life by up to
50%. The UPS has an internal bypass for overload conditions, and there
is an optional external maintenance bypass.
Eaton 3000W 9PX
Tower / Rack UPS Features

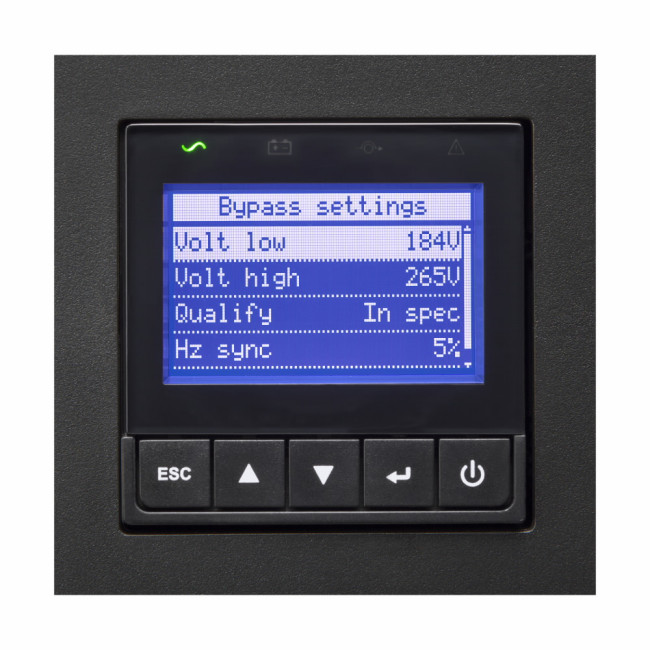

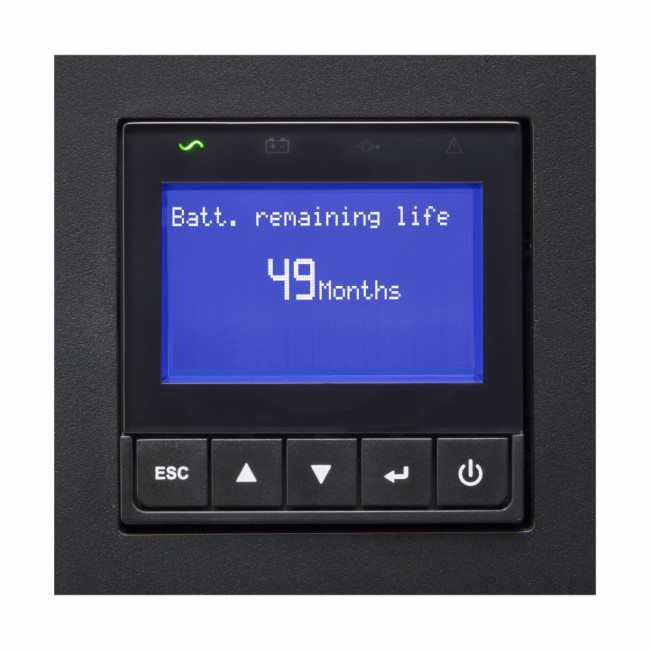

A front panel LCD
graphical display for UPS status and measurements

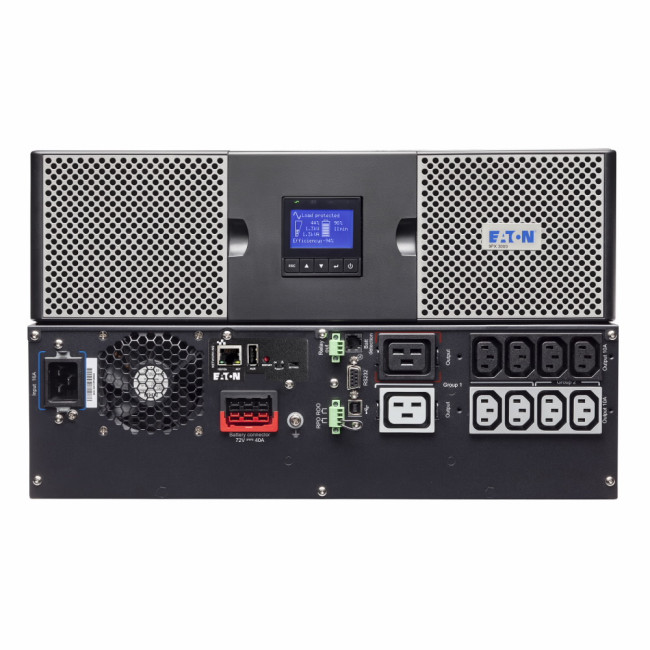

8 IEC outlet sockets with surge protection and battery backup in 2
outlet groups
Load segment control to prioritise shutdowns of non-essential devices to
increase runtime
Extended runtime options using external plug-in battery packs

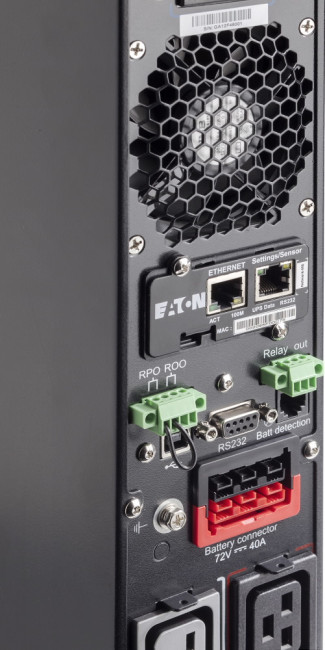

Serial, USB connectivity and a slot for an optional communication card
Reset button (circuit breaker)
Automatic battery test
Automatic restart
Note: The content above is generic for the series.
For Correct info about this particular model, please refer to
Specifications section.
