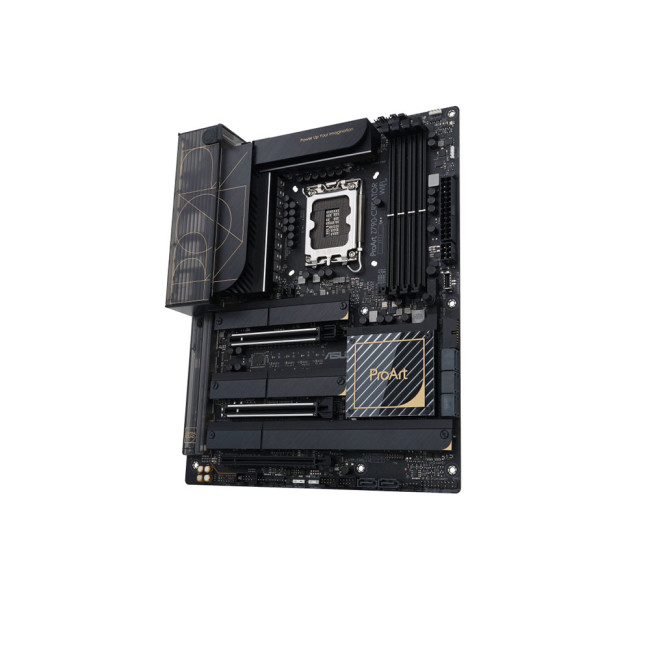

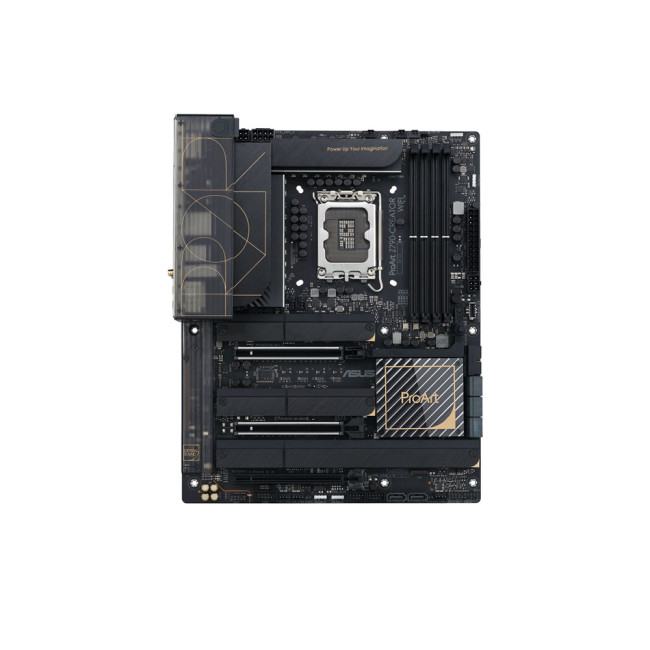

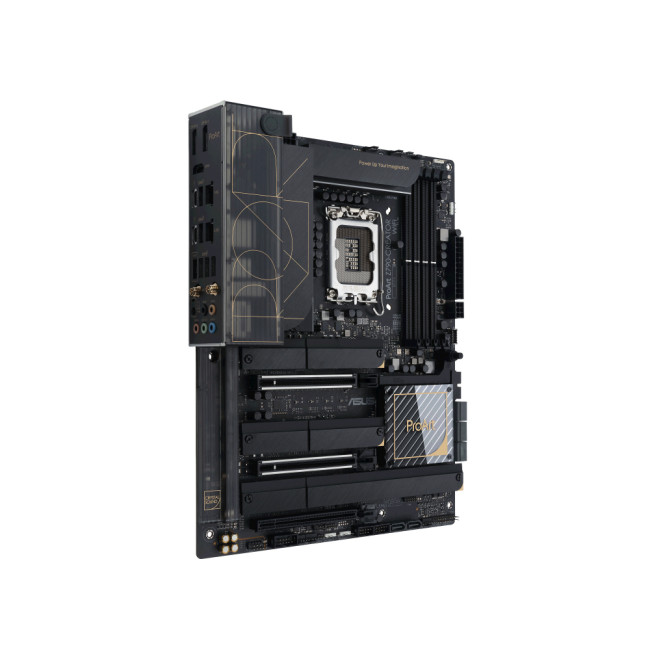

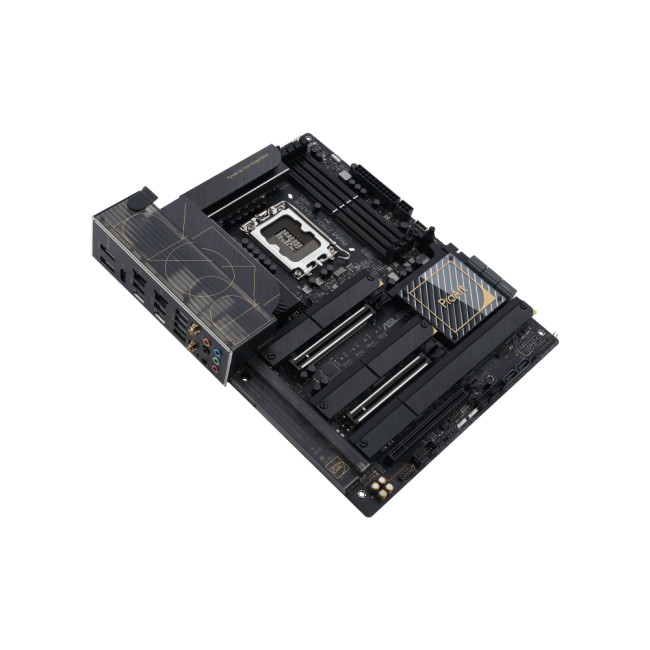

The ProArt Z790-Creator
WiFi empowers creators of all levels by maximizing the performance of
13th & 12th Gen Intel® Core™ processors with 16+1 teamed power stages,
DDR5 and PCIe 5.0 and lightning-fast connectivity including Thunderbolt™
4 (USB4® compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
It manifests a professional, elegant and precise vision for content
creators of all kinds with a style elevated by tone-on-tone layers of
black infused with metallic gold touches.
All you need for maximum productivity
Thunderbolt™ 4 ports (USB4® compliant)
Get immersed in your creations with two Thunderbolt™ 4 ports
connect to all your content creation gadgets and enable up to 40 Gbps
bi-directional data transfers. To further push your creative work with
one 8K or two 4K color-accurate monitors, you can connect your discrete
graphics card to the onboard DisplayPort-in port at the back I/O and
direct the video output via the Thunderbolt 4 port.
Ultrafast networking
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly
available radio spectrum in the 6 GHz band, providing up to three times
the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver
ultrafast wireless networking speeds along with improved capacity and
better performance in dense wireless environments.
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously
for 2.5 Gb internet streaming or uploading and 10 Gb for local
network-attached storage (NAS), allowing for improved data organization
and security.
PCIe 5.0 expansion slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to
offer incredible speeds up to 64 GB/s for compatible devices. To bear
the brunt of massive graphics cards, they are also protected with
SafeSlot retention brackets, and the top slot can be released easily
thanks to the Q-Release button.
Ultrafast M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe®
SSD RAID support for an incredible performance boost. Create a RAID
configuration with up to two PCIe 4.0 storage devices to enjoy the
fastest data transfer speeds.
Quick charging your USB devices
USB 3.2 Gen 2x2 Type-C® front-panel
connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This
header also features Quick Charge 4+ technology that can quickly charge
your pen display, tablet or mobile phone up to 60 watts by using a PCIe
power supply cable plugged into the nearby 6-pin connector.
The core of your powerful workstation
Robust power design
16+1 teamed power stages
Rated for 70 amps and combining high-side and low-side MOSFETs
and drivers into a single package, these stages deliver power and
efficiency tailored for the latest 13th & 12th Gen Intel Core processors.
Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the
finest in the industry and ensures ultra-smooth power delivery to the
CPU.
ProCool II power connector
Built to tight specifications to ensure flush contact with PSU
power lines. The resulting lower impedance helps to prevent hotspots and
connector failure.
Chokes & capacitors
Superior alloy chokes and durable capacitors are engineered to
resist extreme temperatures, providing a higher level of performance
than the industry standard.
Performance boost
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI
Overclocking profiles the CPU and cooling to predict the optimal
configuration and push the system to its limits. Predicted values can be
engaged automatically or used as a launching ground for further
experimentation.
Memory
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware
feature for PMIC-restricted memory modules. AEMP II is based on a CPU
and memory modules ability to train the memory chips on your kit, and
it presents an optimized clock speed that can effortlessly unleash
performance.
Built through a flexible training method, AEMP II makes it easy to not
only tune the memory above baseline settings but also maintain the
stability of system operation, whether getting the most out of an
entry-level module or priming a high-speed kit for ultimate performance.
Self-adaptive fan tuning
AI Cooling II balances the thermals and acoustics of any build
with a single click. A proprietary ASUS algorithm slashes unnecessary
noise while running a quick stress test, and then it monitors CPU
temperatures to dynamically adjust fans to optimal speeds.
Everything you need to optimize workflow
Two-Way AI Noise Cancelation
As working from home becomes the new normal, clear online
communication is more critical than ever. Two-Way AI Noise Cancelation
is an audio utility that leverages a massive deep-learning database to
reduce background noise from the microphone* and incoming audio.
Distracting keyboard clatter, mouse clicks and other ambient noises are
smartly pared back so your calls and video conferences with partners and
clients are crystal clear.
Customize your personal settings
ProArt Creator Hub is your personal portal to monitor your PC
status, personalize settings or optimize your workflow. It features an
intuitive overview dashboard, quickly switching fan profiles and makes
short work of switching between different performance modes.
Security control and remote management
Advanced security management functions from ASUS Control Center
Express protect the systems and confidential data in your creative
studio.
USB port management
Enable or disable the USB port or set it to Read-Only to
prevent data leaks.
Software blacklist
For added security, a software blacklist is available to help
prevent the use of high-risk applications.
Registry Editor on/off
Remotely disable the Registry Editor on client devices to
prevent unauthorized changes to system configurations.
Trusted stability
ProArt Z790-Creator WiFi is engineered and rigorously tested to
offer superior quality, stability and compatibility to ensure that it
empowers creativity for years to come.
