Support RAID Function
The ASUS Hyper M.2 x16
Gen5 Card is able to support RAID functions across different CPU
platforms. For ultimate flexibility , unused CPU PCIe lanes can be
assigned to storage to create a bootable RAID array with up to four M.2
SSDs*.
*M.2 SSD support
dependent on CPU and motherboard design. Please check the specifications
and user manual of your motherboard. Update to the latest BIOS and set
up PCIe bifurcation settings before using the NVMe RAID function.
One Card, 8X The Bandwidth
The ASUS Hyper M.2 x16
Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane
compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of
bandwidth per card 8X the bandwidth of a single PCIe 4.0 drive.
Enhanced Cooling
The ASUS Hyper M.2 x16
Gen5 Card not only enhances hardware but also incorporates advanced
software solutions for efficient thermal management, effectively
dissipating heat to keep SSDs at optimal temperature for unwavering
performance.

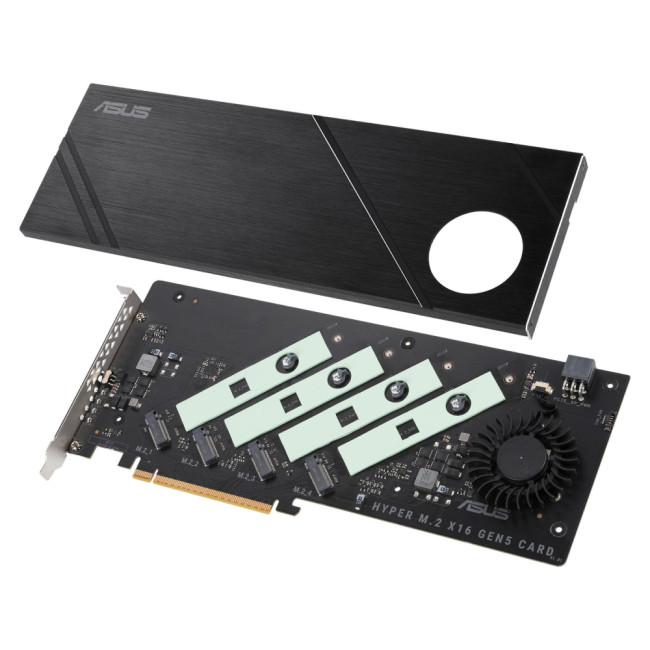

Effective Thermal Solution
A full-cover heatsink that
attaches to the M.2 SSD and features air duct and blower-style fan.
Plus, the four M.2 slots are supported by top and bottom thermal pads to
reduce temperature-induced throttling during heavy, sustained data
transfers.
Fan Xpert 4 Support
The integrated
blower-style active fan easily connects to the motherboard chassis fan
header, allowing users to adjust fan speed in ASUS Fan Xpert 4.

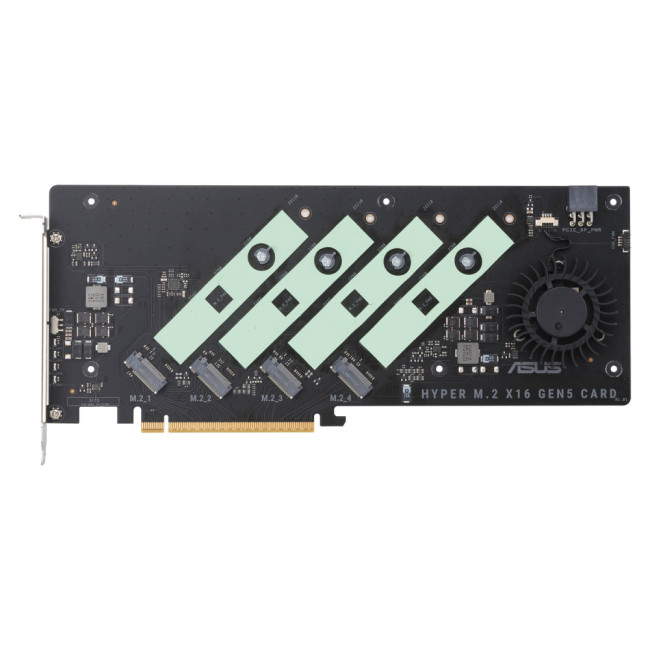

Designed For Unthrottled
Transfer Speeds
The ASUS Hyper M.2 x16
Gen5 Card has four M.2 slots supporting both PCIe 5.0 and 4.0 that
allow users to supplement entire Designed for latest-generation NVMe
drives, the card features a stable power supply that provides up to 14
watts of power per drive. The card also supports RAID functions across
four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.
