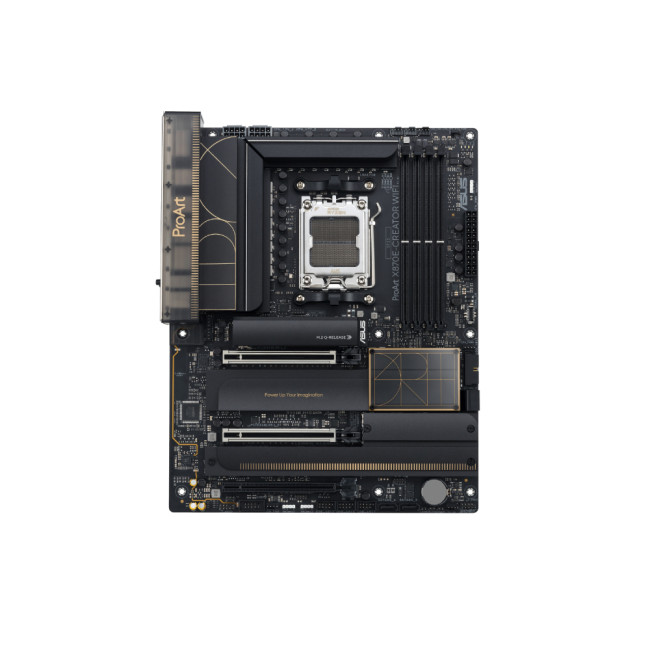

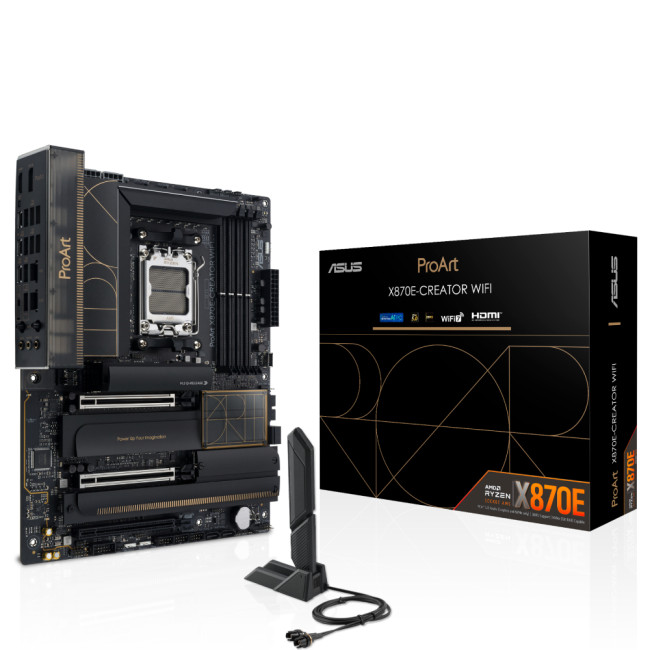

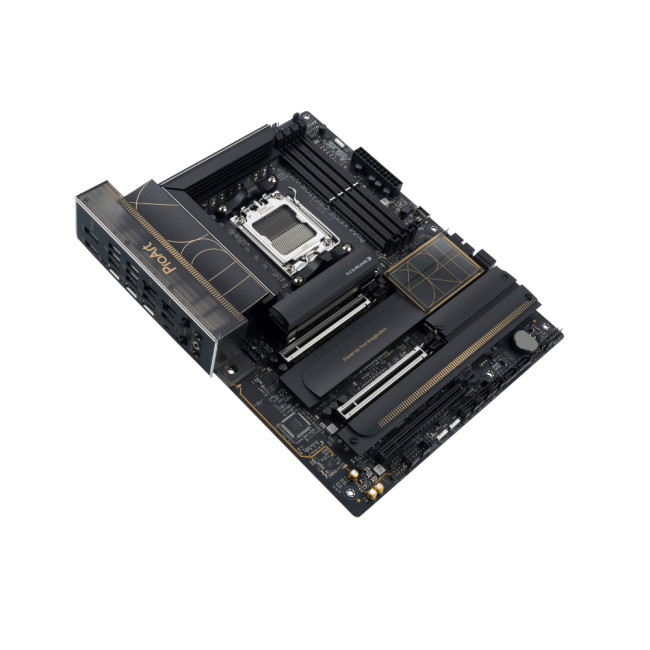

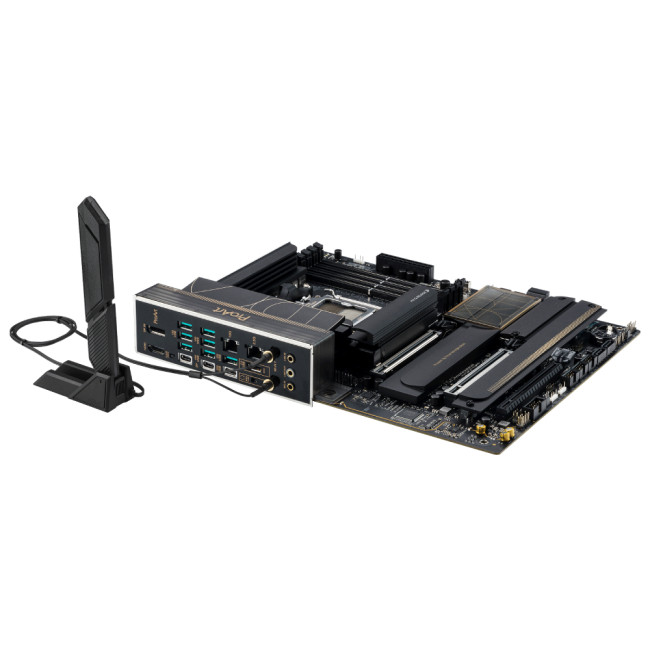

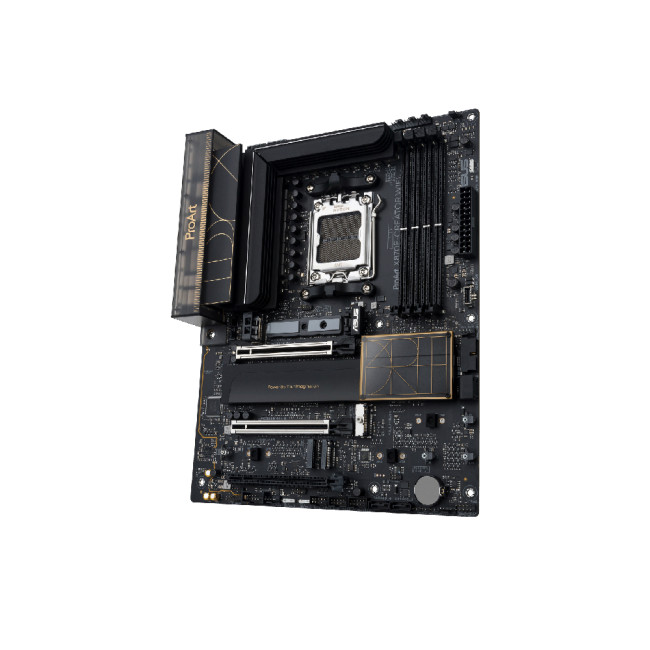

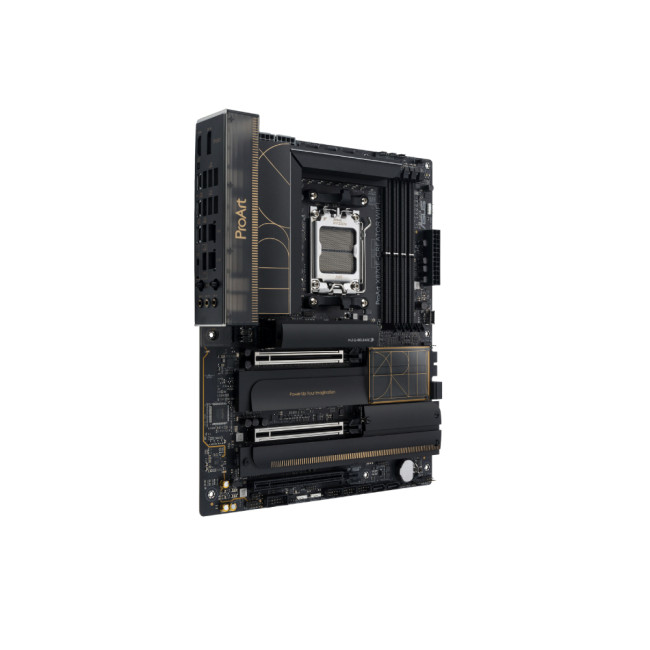

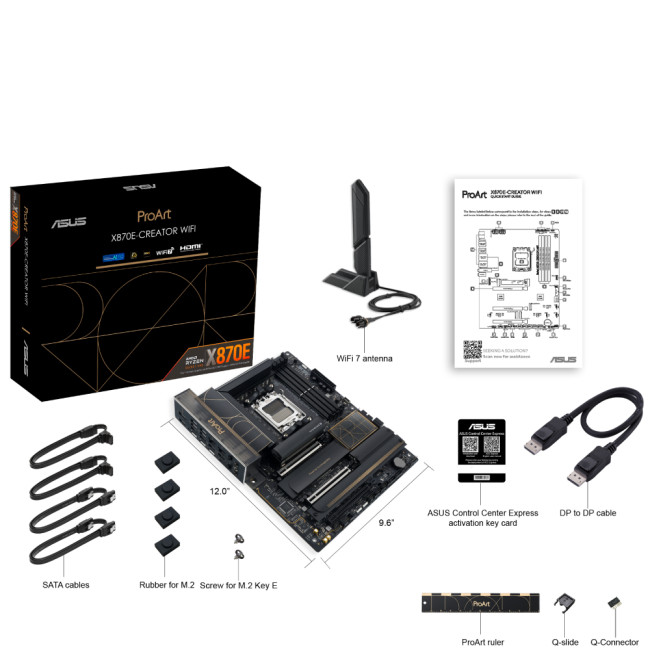

ASUS PROART X870E-CREATOR WIFI AMD X870EAM5 ATX Motherboard

ProArt X870E-CREATOR WIFI

The ProArt X870E-Creator WiFi empowers creators of all levels by maximising the performance of the latest AMD RyzenTM 9000, 8000, and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe 5.0, and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7.

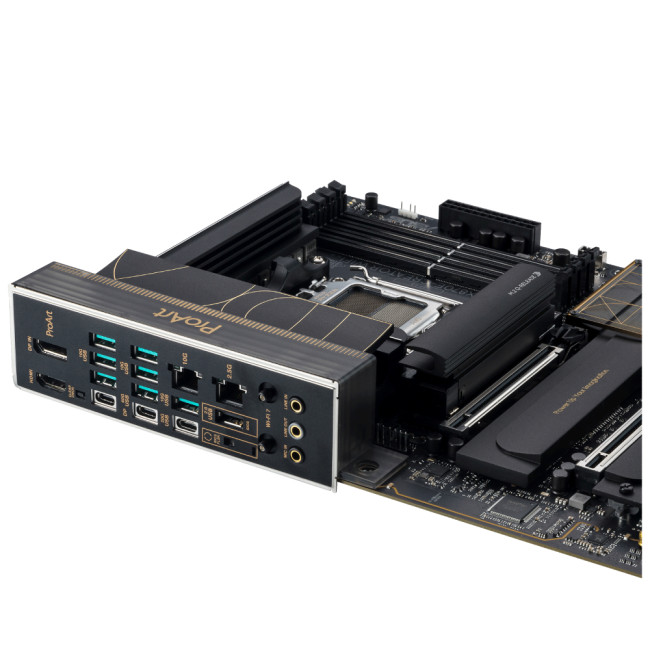

This motherboard manifests a professional, elegant, and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.?

Dual USB4 Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.?

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

PCIe 5.0 Support

Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots

ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

USB 20Gbps Type-C front-panel connector with Quick Charge 4+?

This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet, or mobile phone at up to 30 watts.?

Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

AI Overclocking

Maximised CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II

Optimised thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II

Optimised network performance, helping to ensure seamless connectivity and maximised WiFi 7 speeds.

Dynamic OC Switcher

Dynamic OC Switcher maximises CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.

PBO Enhancement

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning PBO parameters, this AMD algorithm can leverage the motherboards robust power solution to ramp up performance even higher.?

DDR5 Strength

For those who want to fly past stock DDR5 speeds*, the ProArt X870E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS Enhanced Memory Profile (AEMP)

This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.?

The Power of Minimalist Design

A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Colour Management?

One of the most important things for creators is colour. The top right corner allows easy access to the Colour Management feature. This includes the Screen Colour Picker and Image Colour Extractor that make it simple to get a detailed colour analysis and colour information, and you can use the Colour Palette to build your personal colour preferences. You will also find colour trends and colour palettes created by the professionals at the ASUS Design Centre.?

Security Control and Remote Management

Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.

Upgraded UEFI BIOS

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup

Trusted Stability

ProArt X870E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Features:

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance.
PCie 5.0 Expansion Slots: Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices.
Latest M.2 Support: two onboard PCIe 5.0 M.2 slots, and two PCIe 4.0 M.2 slots.
Abundant Connectivity: Dual USB4 Connectivity and USB 20Gbps Type-C front-panel connector with Quick Charge 4+.
High-Performance Networking: WiFi 7 and 10 Gb & 2.5 Gb Ethernet.
DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield.
Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
