Omada SDNThe Smarter
Cloud Solution for Business Networking
As the gateway that
seamlessly integrates into the Omada Software Defined Networking (SDN)
platform, TL-ER7206 allows for remote and centralized management,
anywhere, anytime. Standalone management via the Web UI or app is also
available to maximize convenience.
Up to Four WAN Gigabit
Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port,
one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports
allow the router to support up to four WAN ports to satisfy various
internet access requirements through one device. The multi-WAN Load
Balancing function distributes data streams according to the bandwidth
proportion of every WAN port to raise the utilization rate of multi-line
broadband.

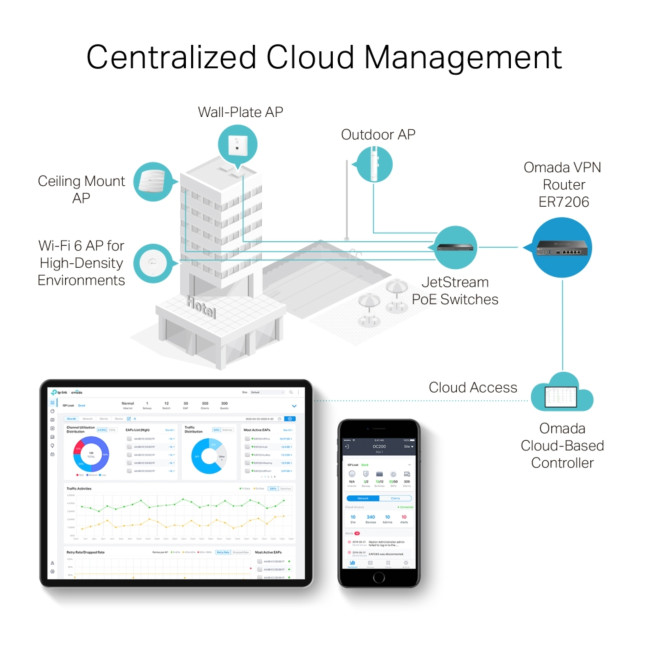

Hassle-Free Centralized
Cloud Management:
100% centralized cloud
management of whole network from different sitesall controlled from a
single interface anywhere, anytime.

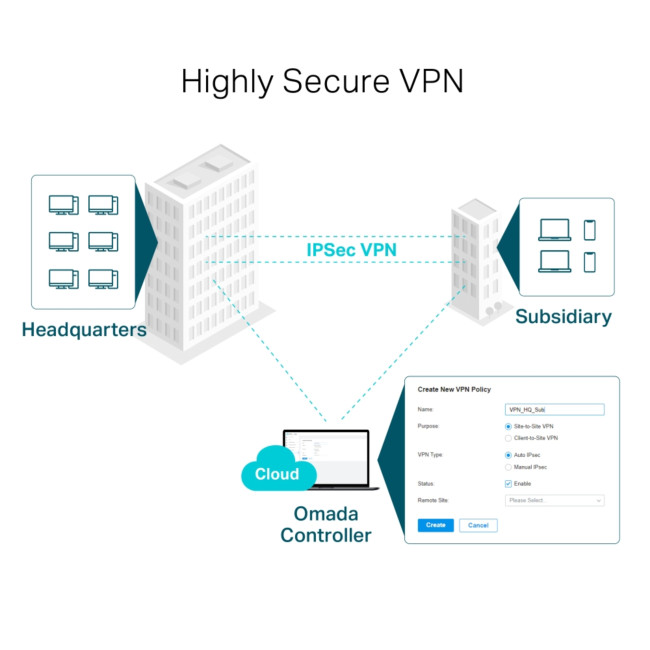

Highly Secure VPN
TL-ER7206 supports
IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware
design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50×
OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec
VPN* greatly simplifies VPN configuration and facilitates network
management and deployment while also securing and encrypting private
site-to-site data communications traveling over the internet.
Internet Access Management
Strategy
Standardize users online
behavior and easily specify the internet access rights and strategies of
employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive
Portal authentication facilitates network resource control by capturing,
authenticating, and classifying user access. Appropriate network
resources can also be allocated for particular users or guests.
Easy Management with the
Omada App
Follow configuration
instructions on the free Omada app to get set up in minutes. Omada lets
you configure settings, monitor the network status and manage clients,
all from the convenience of a smart phone or tablet.
Features
Integrated
into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized
Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for
ultra convenience and easy management.
Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports
provide high-speed wired connectivity.
Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit
RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN: Supports up to 100× LAN-to-LAN
IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies,
DoS defense,IP/MAC/URL filtering, and more security functions protect
your network and data.
