Refurbished MSI MAG A850GL 850W ATX 3.0 Full Modular 80+ Gold PCIe 5.0 Compact Power Supply

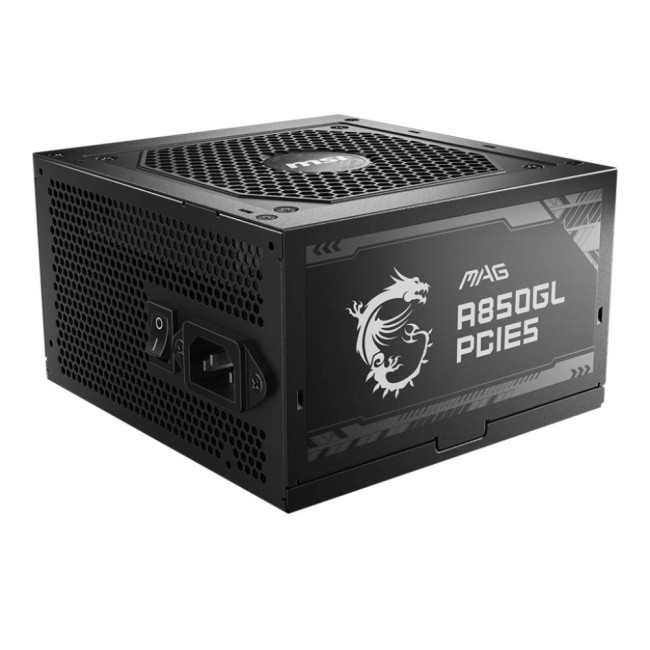

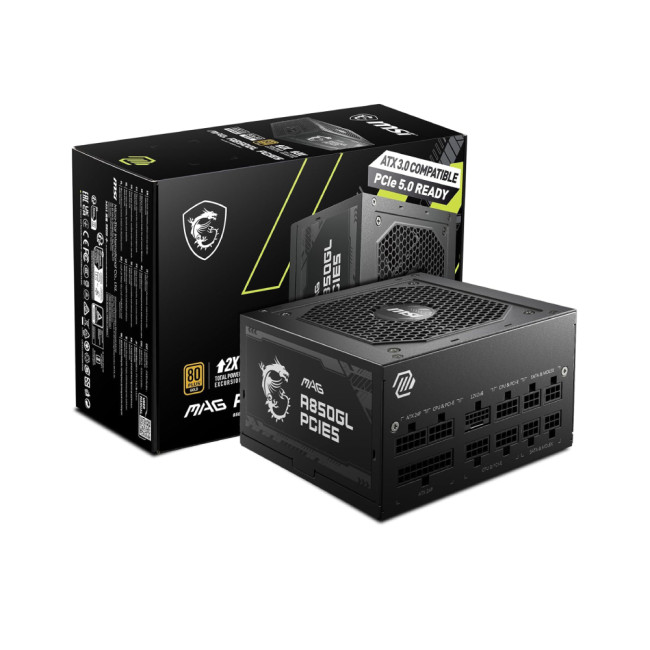

MSI MAG A850GL PCIE5 Power Supply

Overview

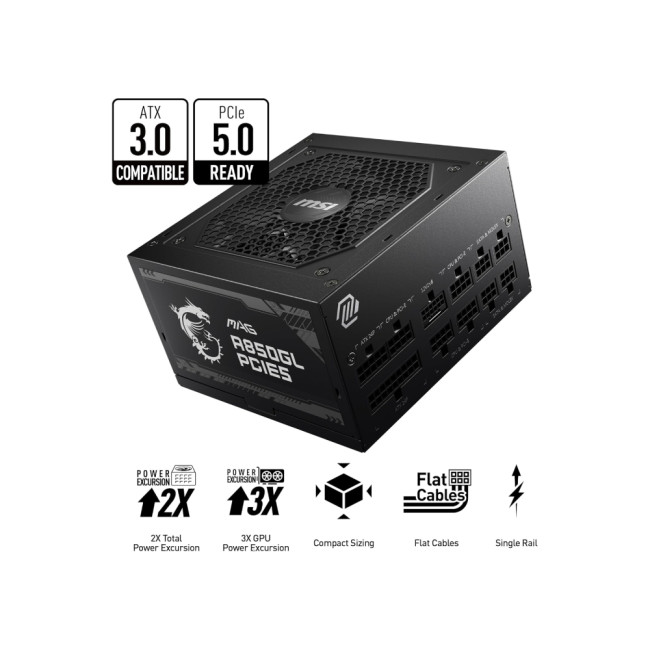

The MSI MAG A850GL PCIE5 Power Supply is an 850W high-performance unit built for modern gaming PCs and workstation systems. Designed with ATX 3.1 standards and native PCIe 5.1 support, it is optimized for next-generation GPUs and power-hungry components while maintaining efficiency and stability.

Power Output and Efficiency

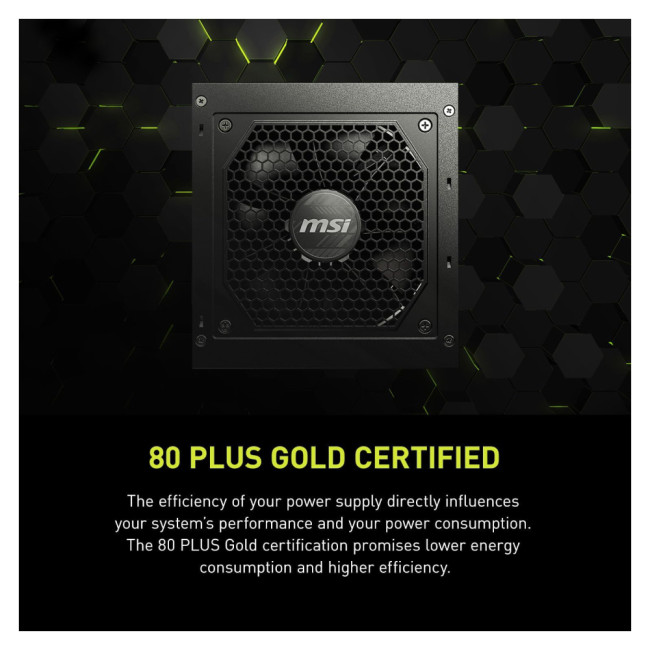

This power supply delivers 850 watts of continuous power, making it suitable for high-end GPUs and multi-core CPUs. It is 80 PLUS Gold certified, ensuring up to around 90% efficiency, which reduces heat output and power consumption. The inclusion of Active PFC further improves energy efficiency and stabilizes power delivery under different loads.

PCIe 5.1 and GPU Support

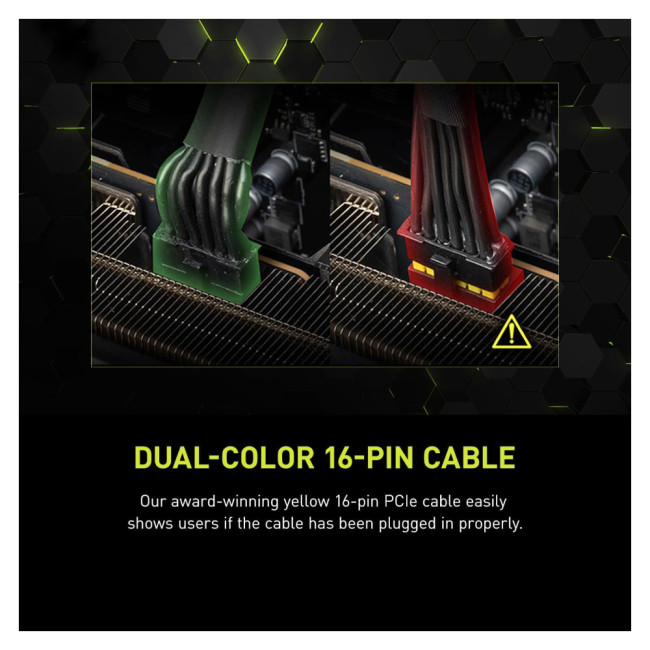

A key highlight is the native 16-pin (12VHPWR) connector, capable of delivering up to 600W directly to modern graphics cards. This allows full compatibility with GPUs like NVIDIA RTX 40 and upcoming series, while also handling power excursions up to 200%, ensuring stability during sudden load spikes.

Design and Build Quality

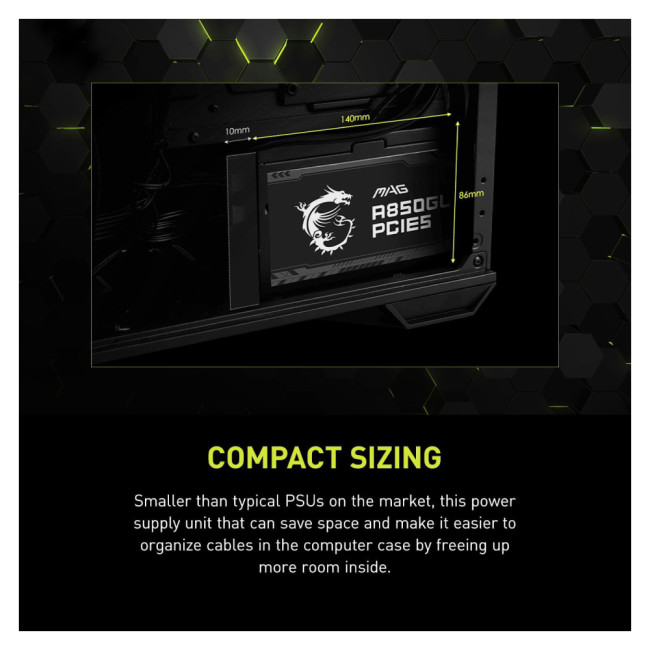

The unit features a fully modular design, allowing users to connect only the required cables. This improves airflow, simplifies cable management, and results in a cleaner PC build. Its compact 140mm length makes it easy to install even in smaller cases without sacrificing performance.

Cooling and Noise Levels

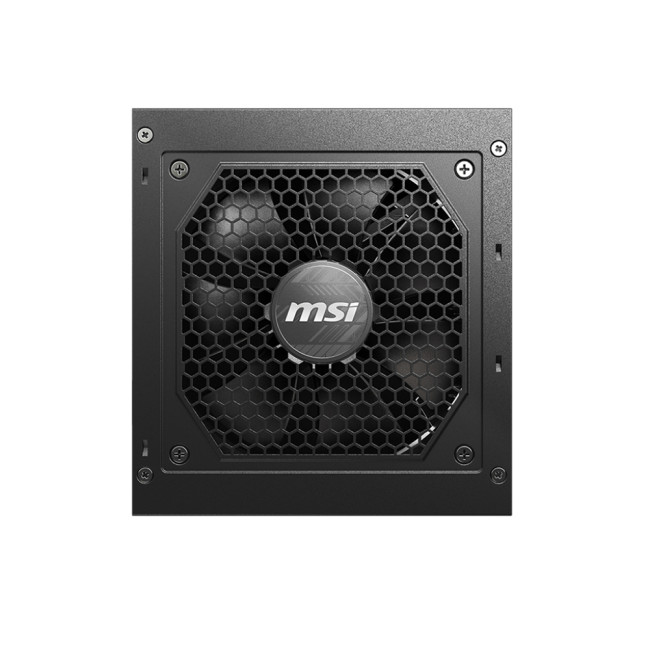

Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan, designed for quiet operation and long lifespan. It provides efficient heat dissipation while keeping noise levels low during normal workloads, making it suitable for both gaming and professional environments.

Internal Architecture

The PSU uses an advanced LLC Full Bridge topology with DC-to-DC conversion, ensuring stable voltage regulation and improved efficiency. This modern internal design enhances reliability and maintains consistent performance across varying loads.

Protection Features

To ensure safe operation, the power supply includes a full suite of protections:

• Over Current Protection (OCP)
• Over Voltage Protection (OVP)
• Over Power Protection (OPP)
• Over Temperature Protection (OTP)
• Short Circuit Protection (SCP)
• Under Voltage Protection (UVP)

These safeguards protect both the PSU and connected components from electrical damage.

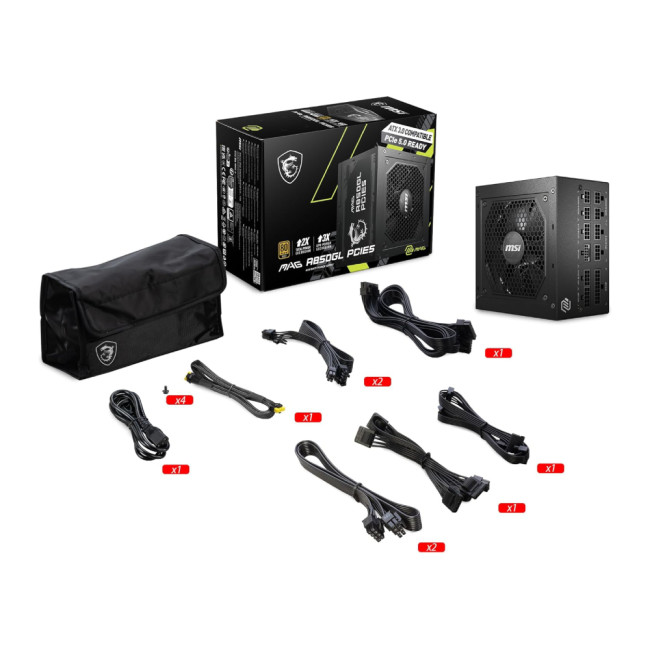

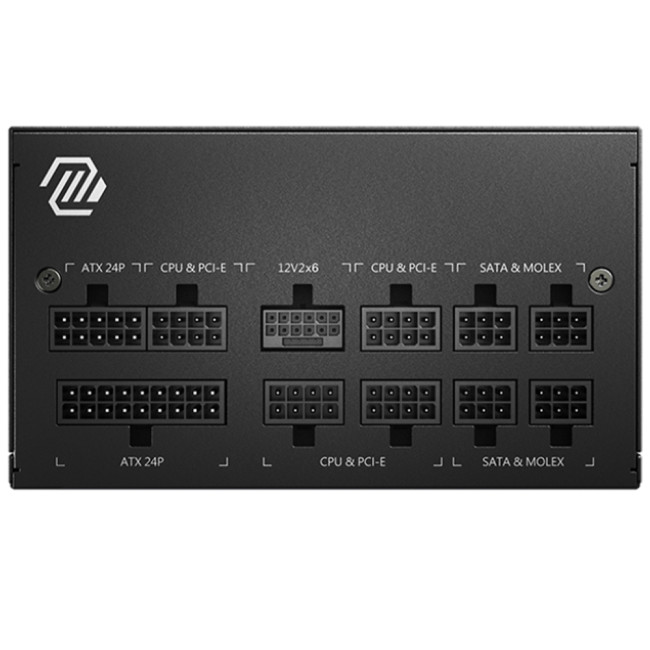

Connectivity Options

The MSI MAG A850GL offers a wide range of connectors, including:

• 1 × 24-pin ATX connector
• 2 × EPS (CPU) connectors
• 1 × PCIe 5.0 (16-pin) connector
• Multiple PCIe 6+2 pin connectors
• Several SATA and peripheral connectors

This ensures compatibility with a wide range of modern PC components and storage devices.

Input and Compatibility

It supports a 100240V input range with a 4763Hz frequency, making it usable worldwide. The PSU is compatible with ATX systems and designed to meet the demands of current and future hardware platforms.
