HANNspree HT 225 HPB Touch Monitor

Display and Touchscreen

The HANNspree HT 225 HPB features a 21.5-inch LED-backlit display with a Full HD resolution of 1920 x 1080 pixels and a 16:9 aspect ratio. The TFT display provides a typical brightness of 250 cd/m² and a 1,000:1 contrast ratio, with up to 16.7 million colours supported. Its 178-degree horizontal and vertical viewing angles allow the screen to remain visible from different positions. A key feature is the projected capacitive touchscreen, which supports up to 10 simultaneous touch points. The screen also has a 7H toughened surface, providing additional protection for regular touch interaction. With its combination of Full HD resolution and multi-touch capability, the monitor is suitable for interactive applications and general desktop use.

Touch Interaction and Viewing

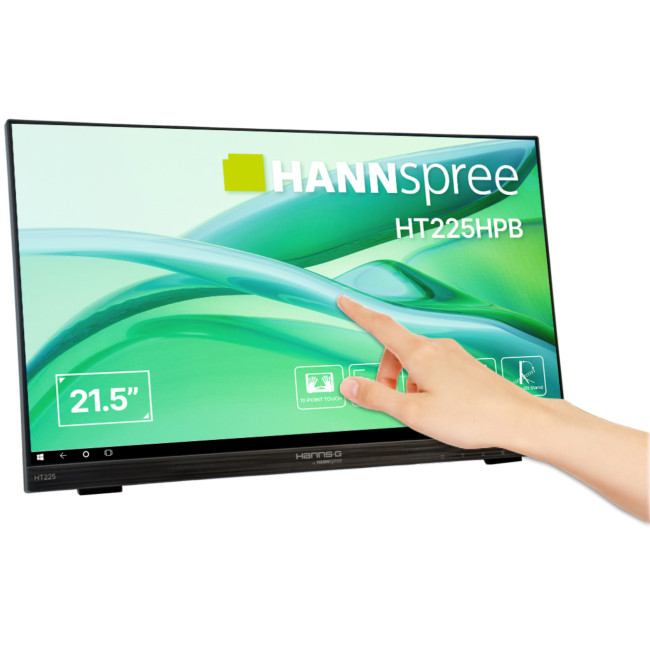

The 10-point capacitive touchscreen allows users to interact directly with compatible applications using multiple fingers at the same time. This provides an alternative to conventional mouse and keyboard input for supported software, making the display suitable for interactive environments and touch-based applications. The monitor has a maximum display frequency of 60Hz at its native 1920 x 1080 resolution, while its response time is specified at 7ms GTG. The 16:9 screen format provides a conventional widescreen workspace, while the 178-degree viewing angles support visibility across a broad range of viewing positions. Preset display modes include Standard, Game, Cinema, Scenery, and Text, providing different settings for various types of content.

Connectivity and Audio

The HT 225 HPB provides several video connection options, including VGA, HDMI, and DisplayPort inputs. This selection allows the monitor to connect with a range of computers and compatible devices using different video interfaces. A USB connection is included for the touchscreen interface, allowing touch input to communicate with a connected computer. The monitor also features built-in stereo speakers rated at 2W per channel, providing integrated audio for compatible content and applications. A PC audio line-in connection is available for the speaker system. The combination of multiple video inputs, USB touch connectivity, and integrated speakers provides a practical configuration for environments where both visual display and direct touch interaction are required.

Stand and Mounting

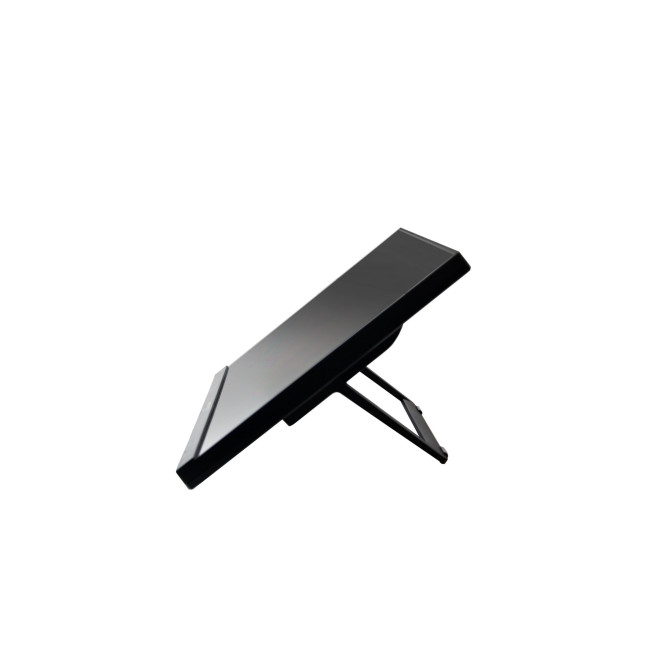

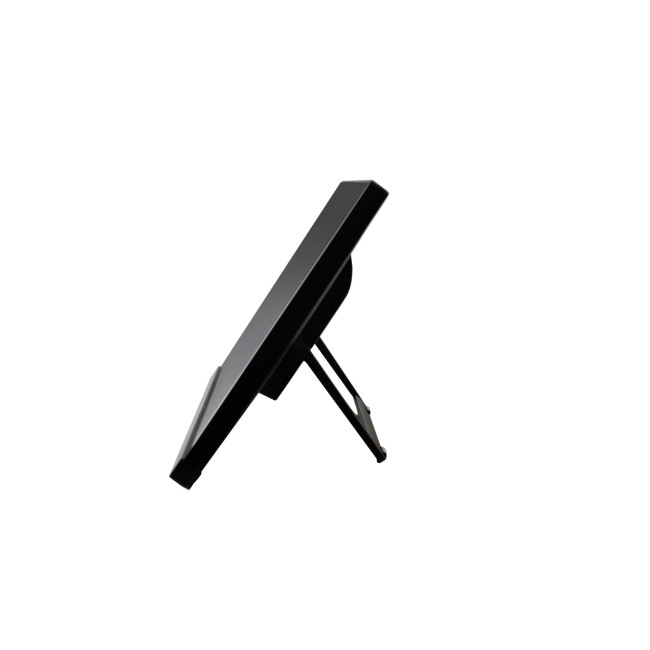

The monitor includes a Smart Adjustable Stand with a book-style design, providing a wide range of positioning options. The stand supports tilt adjustment from 15 to 70 degrees, allowing the screen to be positioned for different viewing and touch-interaction requirements. The display can be used in both landscape and portrait orientations, adding flexibility for different applications. For alternative installation arrangements, the HT 225 HPB supports a 100 x 100mm VESA mounting pattern and can be wall-mounted using compatible equipment. A Kensington Lock is also included for physical security. These adjustment and mounting features allow the monitor to be configured for desk-based use, touch-oriented environments, or installations where a separate mounting solution is preferred.

Design and Practical Use

The HANNspree HT 225 HPB has a compact design measuring approximately 490.3mm wide, 299.4mm high, and 47.8mm deep, with a net weight of around 3.6kg. Its 21.5-inch size provides a practical balance between screen area and desktop footprint. The 7H hardened surface is designed to withstand regular touch interaction, while the adjustable stand supports different operating positions. The monitor uses an AC input range of 100240V and has typical power consumption of around 24W, with low standby and off-mode consumption. It is suited to desktop applications where Full HD visuals, touch control, multiple connectivity options, integrated audio, and flexible positioning are useful.
