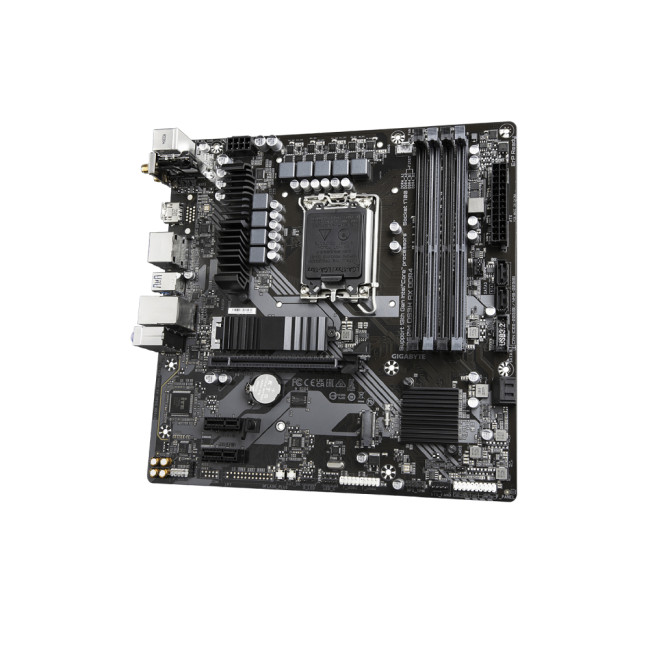

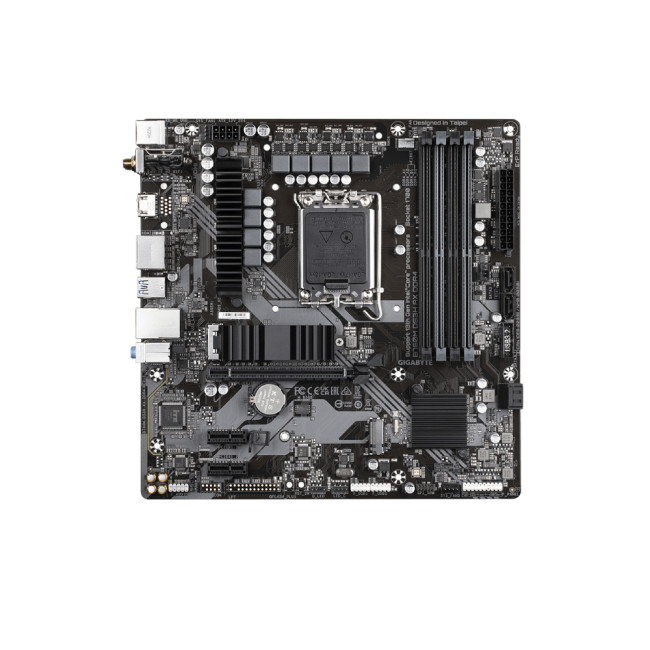

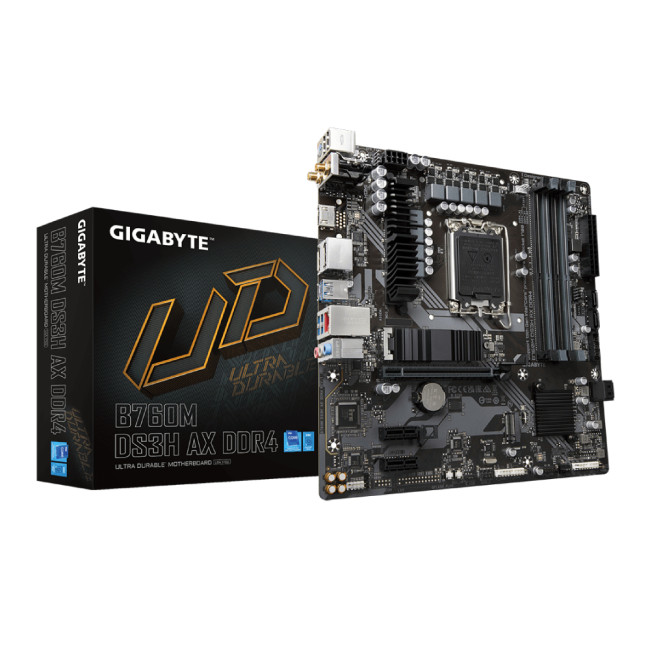

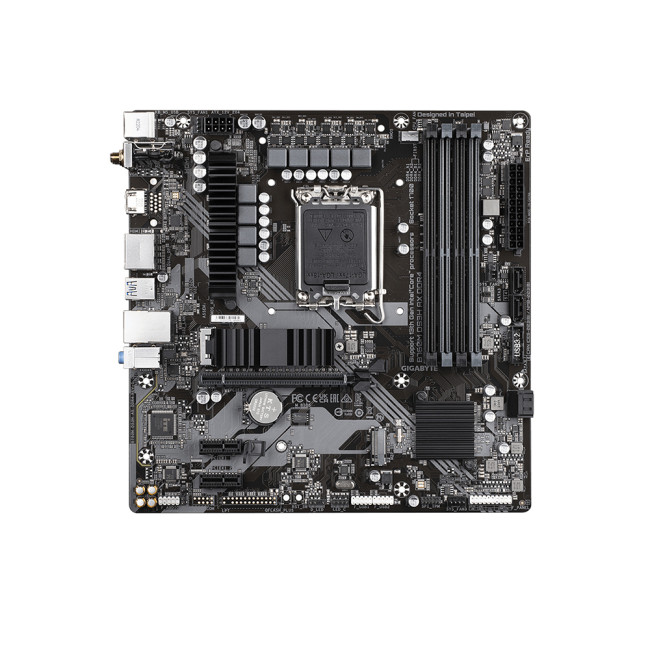

GIGABYTE Intel B760M DS3H AX DDR4 micro ATX LGA 1700 Motherboard

secure_payment

Secure Payment

secure_payment

Free UK Shipping

secure_payment

Easy Return

SKU: B760M DS3H AX DDR4

4.8/5 (12)

£109.99inc. VAT
Order within 0 mins
klarna_logopaypal_logopaypal_credit
Finance available from £10.03/month. T&Cs apply.
Highlights
  • Intel LGA 1700 Socket
  • DDR4 Memory
  • Black Colour
  • 3 Years Warranty
  • B760M DS3H AX DDR4
  • Motherboard Support: Micro-ATX
  • Condition: New
Explore the gigabyte Store
Product Description

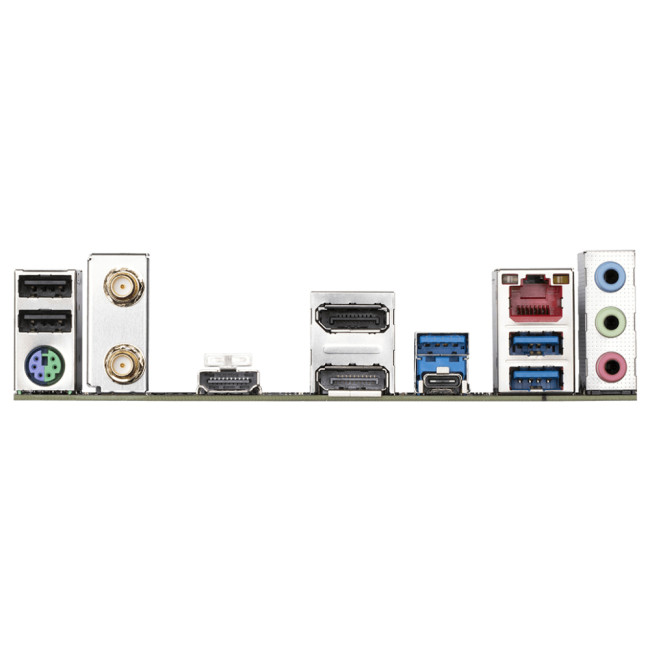

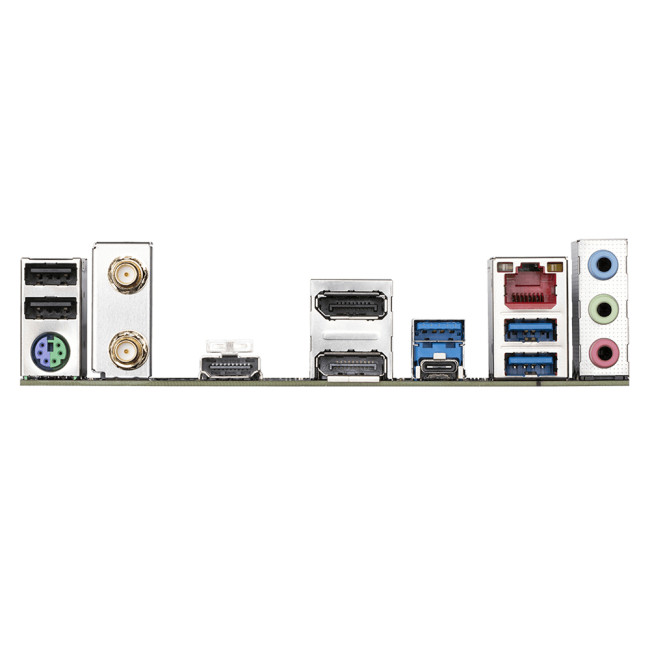

The GIGABYTE B760M DS3H AX DDR4 is an mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR4 memory with four DIMM slots that support XMP memory modules. This motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0×16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The motherboards rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed.

Condition
Condition
New
Product Identifiers
Sku
B760M DS3H AX DDR4
MPN
B760M DS3H AX DDR4
EAN
4719331850869
Type
Motherboard
Brand
GIGABYTE
Model
B760M DS3H AX DDR4
General
Weight
0
Warranty
3 Years
Colour
Black
Item Weight
0.75 kg
Dimensions
(WxDxH) 244 mm x 244 mm x 35 mm
Audio
Audio
7.1 channels Audio
Motherboard Information
Socket Type
Intel LGA 1700
Chipset
Intel B760 Express
Motherboard Form Factor
Micro-ATX
Connectivity
Motherboard Sata Support
4x SATA
Motherboard M2 Slot
2x M.2
Motherboard Pcie X1 Slot
2x PCIe X1
Motherboard Internal USB Connectors
2 x USB 2, 1 x USB 3.2 Gen 1
Motherboard Rear USB Ports
3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2
Motherboard Displayport Connector
2 x DisplayPort
Motherboard Hdmi Connector
1 x HDMI Port
Memory (RAM)
Memory
DIMM
Memory Type
DDR4
Memory Slot Support
Up to 128 GB
Memory Slots
4 x DDR4 Slots
Ports & Interfaces
Expansion Slots
M2 | HDD & SSD | SATA III
IO Ports
CPU fan connector, RGB LED pin header
Core Chassis Specifications
Motherboard Form Factor
Micro-ATX
Key Specifications
CPU
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Compatible Brand
Intel
Socket Type
Intel LGA 1700
Chipset
Intel B760 Express
Other Specifications
Warranty
3 Years
Colour
Black
Model Information
Brand
GIGABYTE
Model
B760M DS3H AX DDR4
