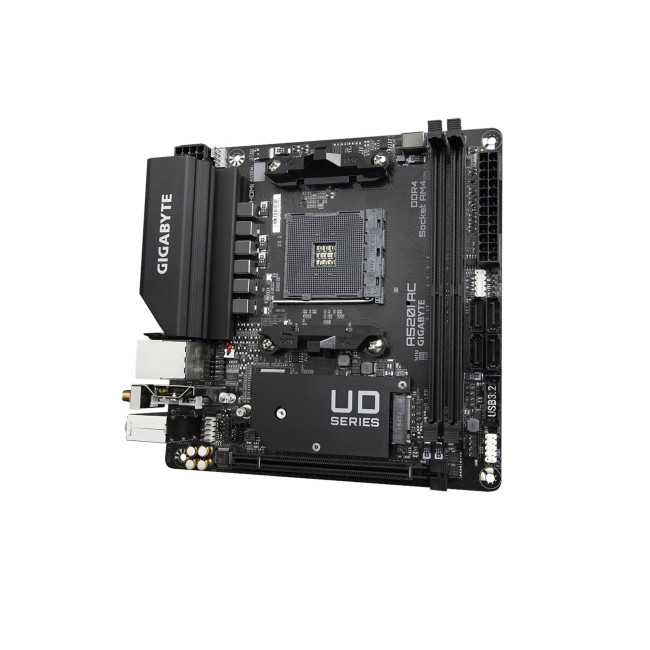

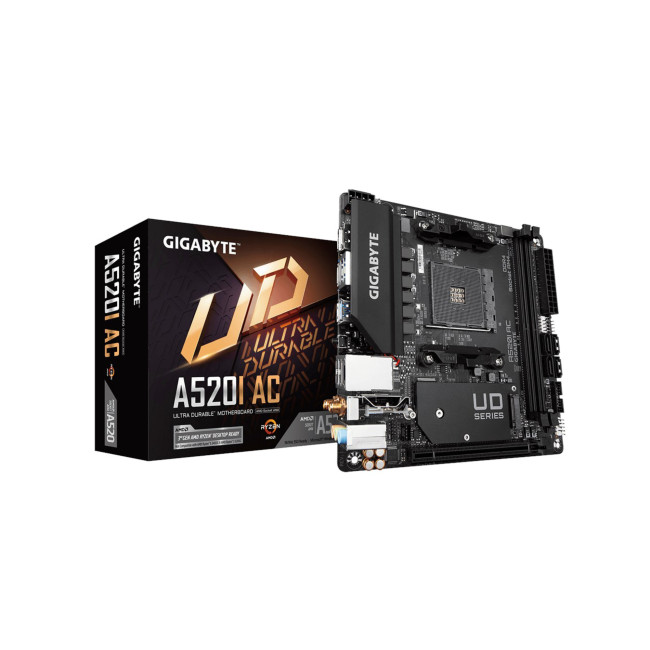

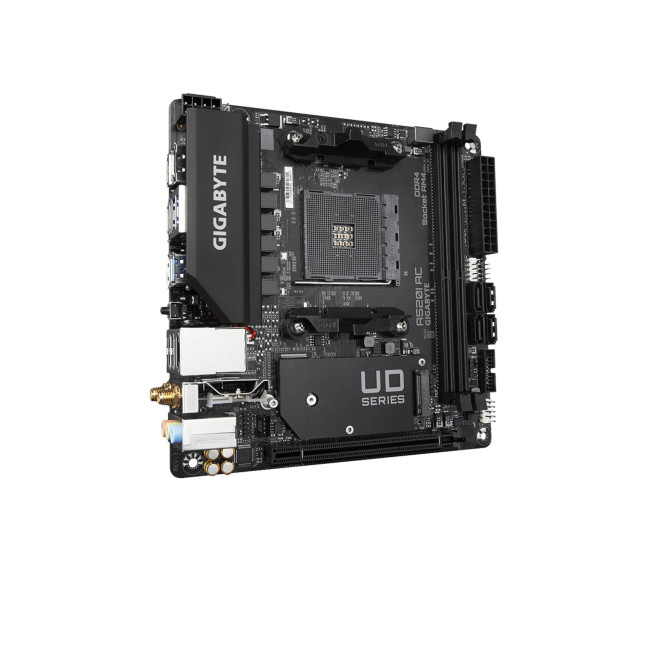

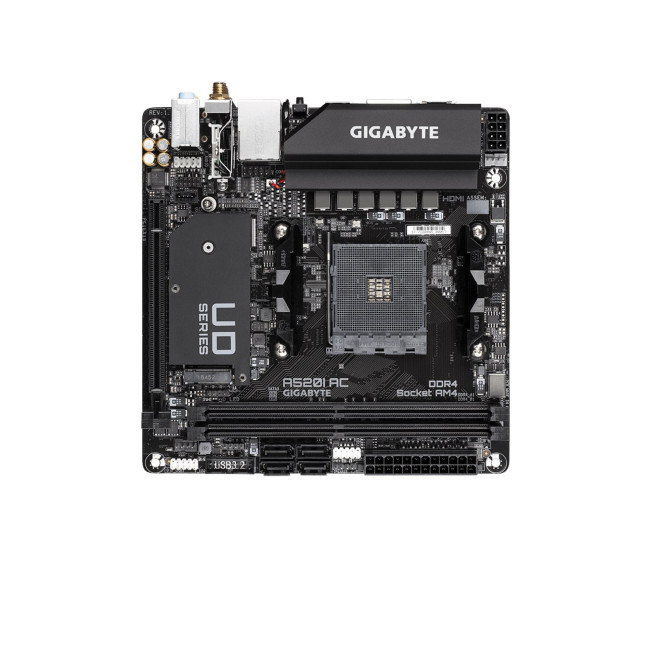

Refurbished GIGABYTE A520I AC Mini ITX AMD Socket AM4 Motherboard - Black

GIGABYTE A520I AC (rev. 1.x)

The GIGABYTE A520I AC is a compact Mini-ITX motherboard designed for AMDs AM4 platform, targeting budget and small form factor builds. Based on the A520 chipset, it supports a wide range of AMD Ryzen processors, including Ryzen 3000, 4000 G-series, and 5000 series CPUs. It is built as an affordable yet capable solution for everyday computing, light gaming, and compact PC setups.Design and Form Factor

CPU and Memory Support

The board features an AM4 socket and supports multiple Ryzen generations, offering flexibility for budget builds or upgrades. It includes two DDR4 DIMM slots supporting dual-channel memory, with a maximum capacity of up to 64GB. Memory speeds can reach high overclocked levels depending on the CPU used.

Performance and Power Delivery

The A520I AC comes with a Direct 6-phase digital VRM design using 55A DrMOS components. This ensures stable power delivery for mid-range and even some higher-end Ryzen CPUs, although it is not primarily intended for heavy overclocking.

This setup provides reliable everyday performance and can handle typical workloads such as gaming, office tasks, and media consumption efficiently.

Expansion and Storage

Due to the A520 chipset, expansion options are more limited compared to higher-end boards. It includes a single PCIe 3.0 x16 slot for a graphics card and one M.2 PCIe 3.0 x4 slot for NVMe SSDs, along with four SATA ports for additional storage.

Notably, PCIe 4.0 is not supported, which can be a limitation for newer GPUs and SSDs.

Connectivity and Features

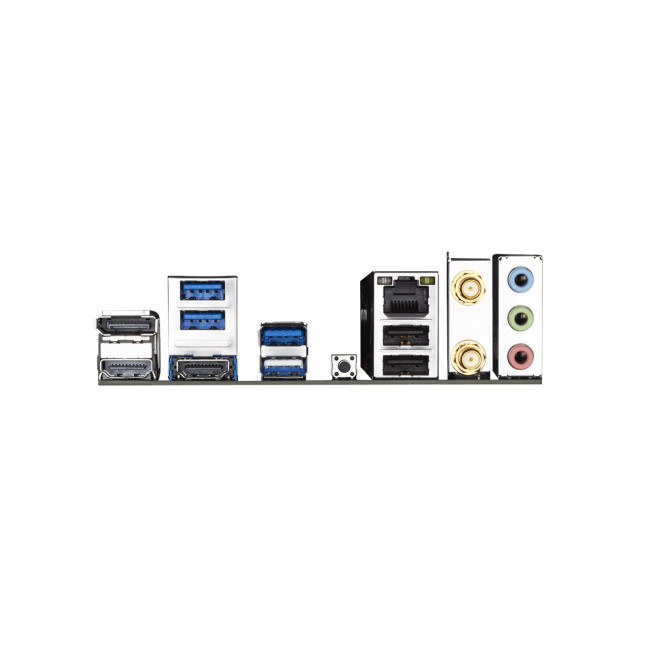

The motherboard includes built-in dual-band Wi-Fi (802.11ac) and Bluetooth 4.2, making it convenient for wireless connectivity without additional cards. It also features Gigabit Ethernet, multiple USB ports, and display outputs including HDMI and DisplayPort for systems using integrated graphics.

Additional features like Smart Fan 5 for cooling control and Q-Flash Plus for BIOS updates without a CPU enhance usability and reliability.
