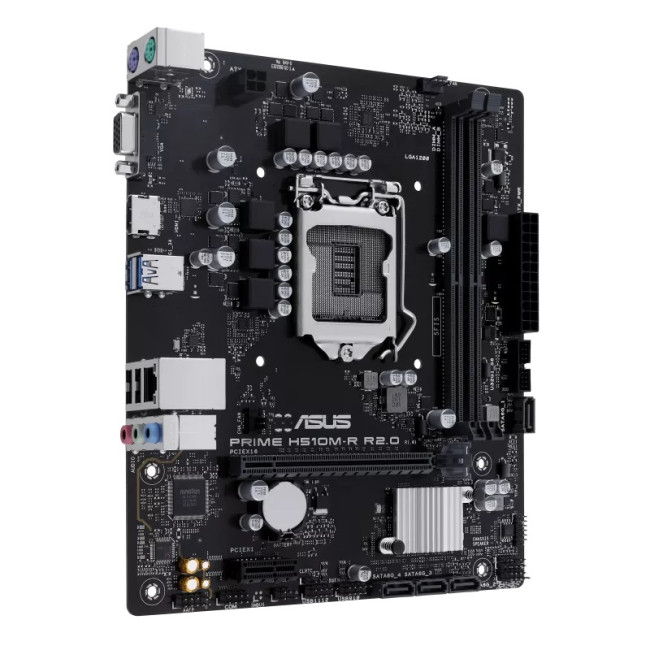

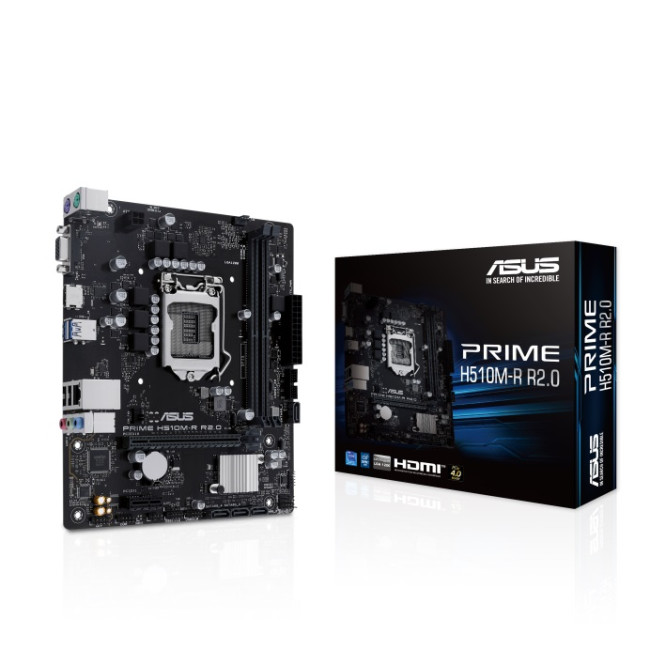

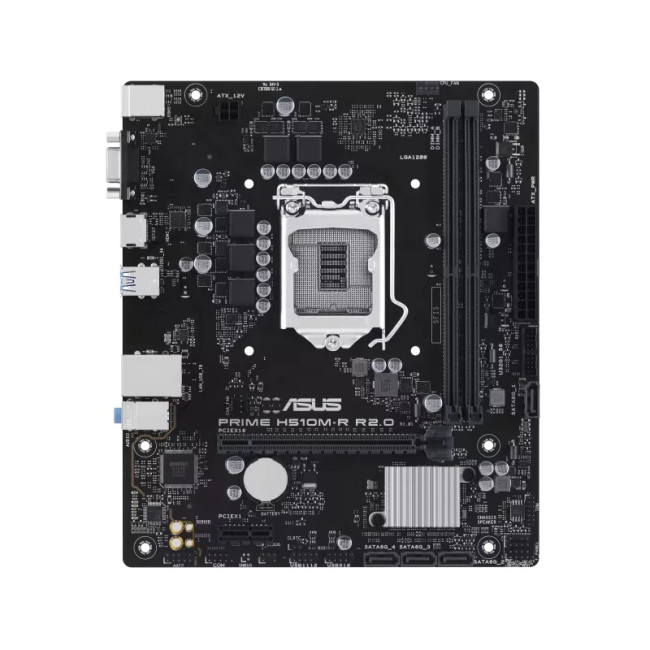

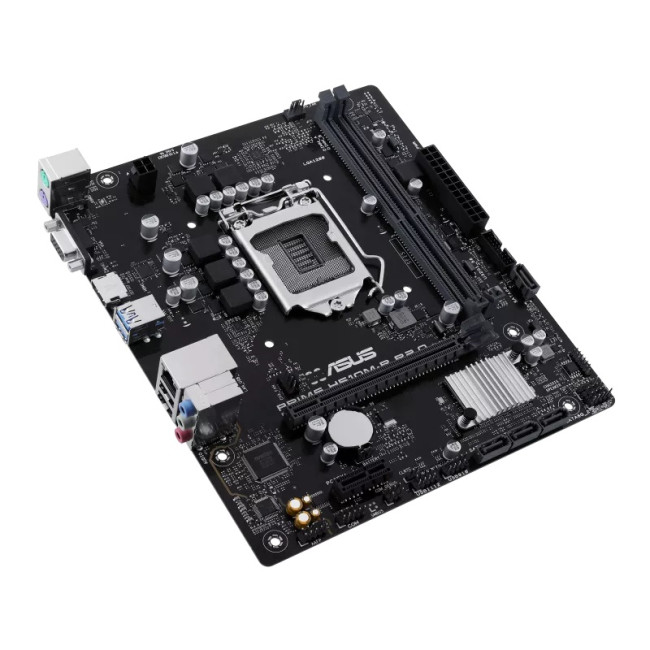

Refurbished ASUS PRIME H510M-R Intel H510 Chipset Socket LGA1200 Micro ATX Motherboard

The ASUS PRIME H510M-R is a Micro-ATX motherboard built on the Intel H510 chipset for the LGA1200 socket. It provides a stable foundation for PC builds utilizing 11th or 10th generation Intel Core, Pentium Gold, and Celeron processors. The board accommodates up to 64 GB of dual-channel DDR4 memory across two DIMM slots, with support for speeds up to 3200 MHz. Power is managed through standard 24-pin ATX and 8-pin EPS connectors, ensuring sufficient power delivery for compatible CPUs in a compact form factor suitable for smaller PC cases.

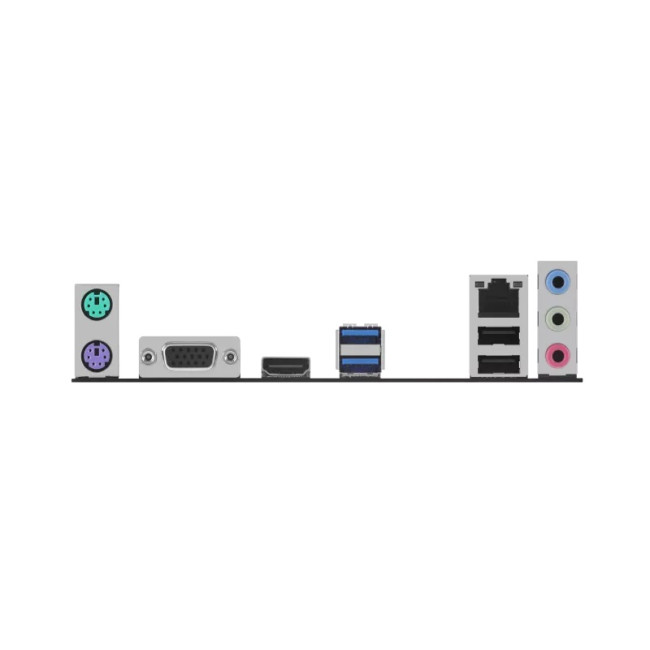

For expansion, the motherboard includes a primary PCIe x16 slot for a graphics card and an additional PCIe 3.0 x1 slot for other components. The storage configuration consists of a single M.2 slot compatible with multiple drive lengths and four SATA III ports for conventional hard drives or SSDs. Rear panel connectivity is handled by two USB 3.2 Gen 1 and two USB 2.0 ports, a Gigabit Ethernet port for wired networking, and an HDMI 2.1 port for video output. Onboard features are completed with integrated Realtek HD audio and internal headers for front panel USB and case fans.

Key Features:

• LGA1200 socket for 11th and 10th Gen Intel processors
• Intel H510 motherboard chipset
• Micro-ATX form factor for compact builds
• Supports up to 64 GB of dual-channel DDR4 memory
• Features one PCIe x16 and one PCIe x1 expansion slot
• Includes one M.2 slot and four SATA III ports for storage
• Equipped with a Gigabit Ethernet port
• Provides an HDMI 2.1 port for video output
