ASUS PRIME H510M-A Intel H510 LGA 1200 micro ATX Motherboard HDMI DisplayPort - 90MB17C0-M0EAY0
Secure Payment
Free UK Shipping
Easy Return
ASUS PRIME H510M-A Intel H510 LGA 1200 micro ATX Motherboard HDMI DisplayPort - 90MB17C0-M0EAY0

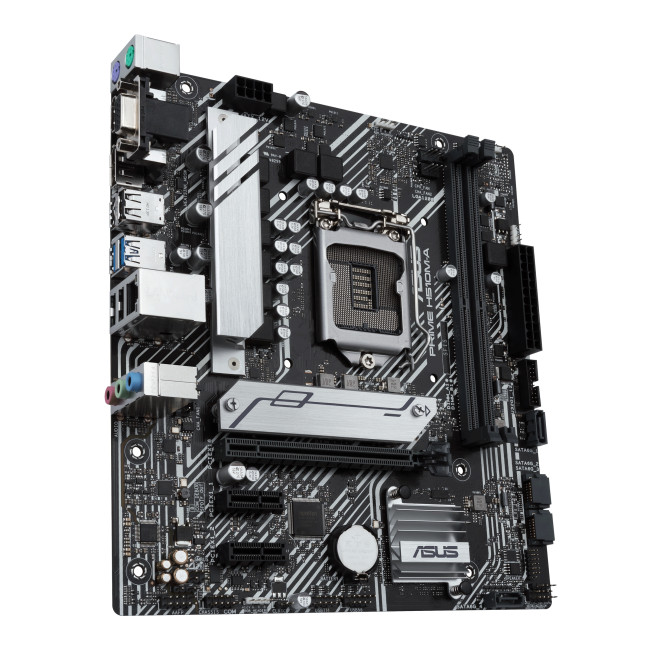

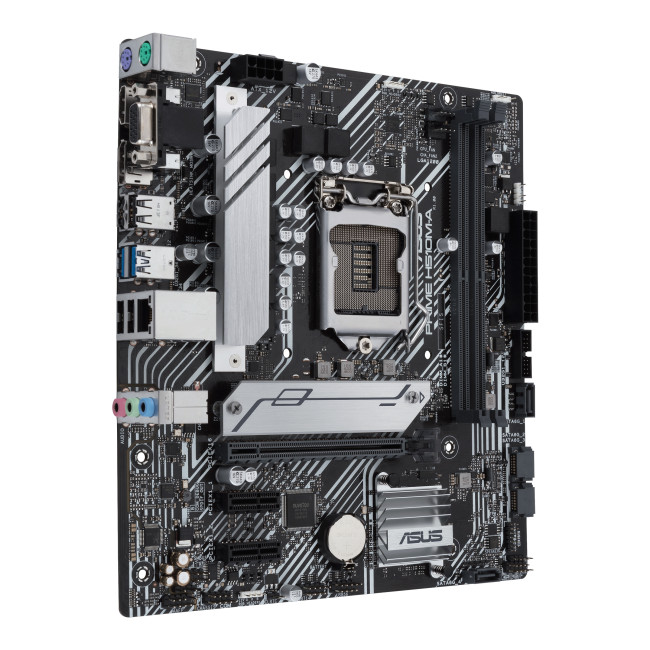

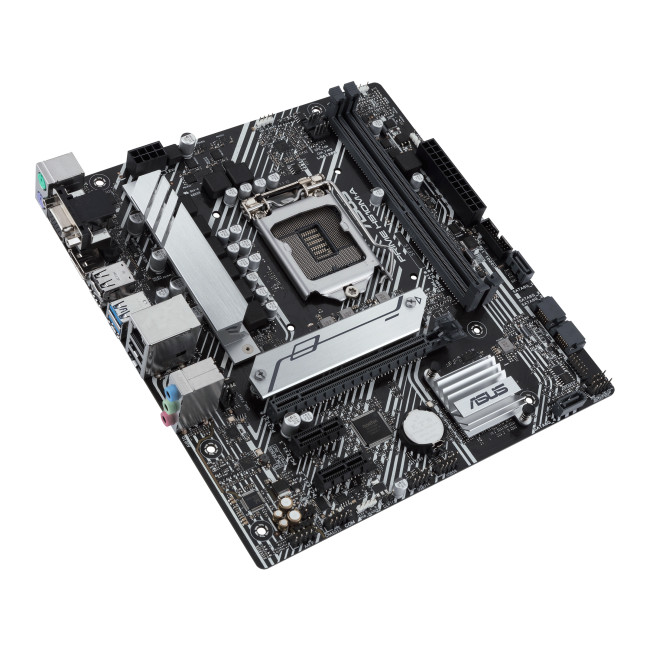

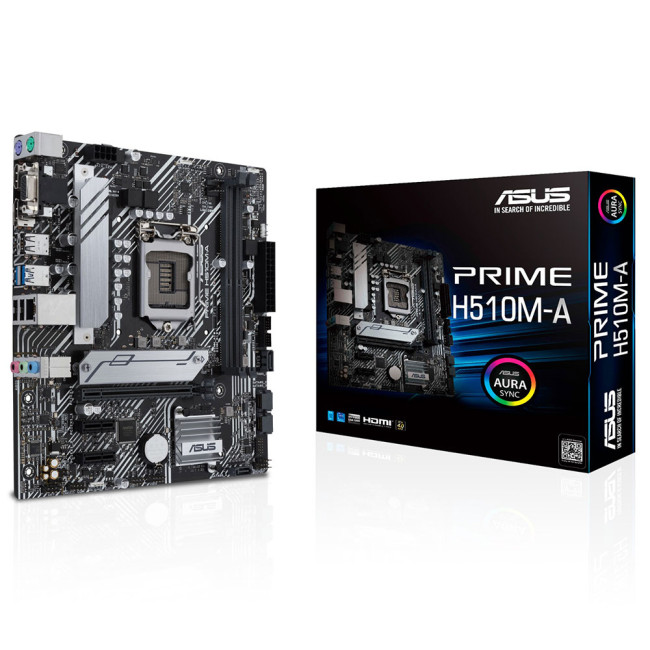

ASUS PRIME H510M-A MOTHERBOARD
The ASUS PRIME H510M-A Motherboard is an Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers. ASUS Prime motherboards are designed to unleash the power of the 11th and 10th Gen Intel CPUs. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H510M-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Key Features:
Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1
Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Note: The content above is generic for the series.
For Correct info about this particular model, please refer to
Specifications section.
| Condition | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Condition | New | ||||||||||
| Product Identifiers | |||||||||||
| MPN | 90MB17C0-M0EAY0 | ||||||||||
| EAN | 4711081128465 | ||||||||||
| Type | Motherboard | ||||||||||
| Form Factor | micro ATX | ||||||||||
| Brand | ASUS | ||||||||||
| Model | PRIME H510M-A | ||||||||||
| General | |||||||||||
| Weight | 0 | ||||||||||
| Warranty | 3 Years | ||||||||||
| Motherboard Information | |||||||||||
| Socket Type | LGA 1200 | ||||||||||
| Chipset | Intel H510 | ||||||||||
| Motherboard Form Factor | micro ATX | ||||||||||
| Memory (RAM) | |||||||||||
| Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* | ||||||||||
| Memory Type | DDR4 SDRAM | ||||||||||
| Ports & Interfaces | |||||||||||
| Expansion Slots | PCI Express | ||||||||||
| Core Chassis Specifications | |||||||||||
| Motherboard Form Factor | micro ATX | ||||||||||
| Key Specifications | |||||||||||
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron | ||||||||||
| Compatible Brand | Intel | ||||||||||
| Socket Type | LGA 1200 | ||||||||||
| Chipset | Intel H510 | ||||||||||
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | ||||||||||
| Other Specifications | |||||||||||
| Warranty | 3 Years | ||||||||||
| Model Information | |||||||||||
| Brand | ASUS | ||||||||||
| Model | PRIME H510M-A | ||||||||||
