APC AR3100 rack cabinet 42U Freestanding rack Black

Easy Installation with Removable Roof and Quick-Release Doors

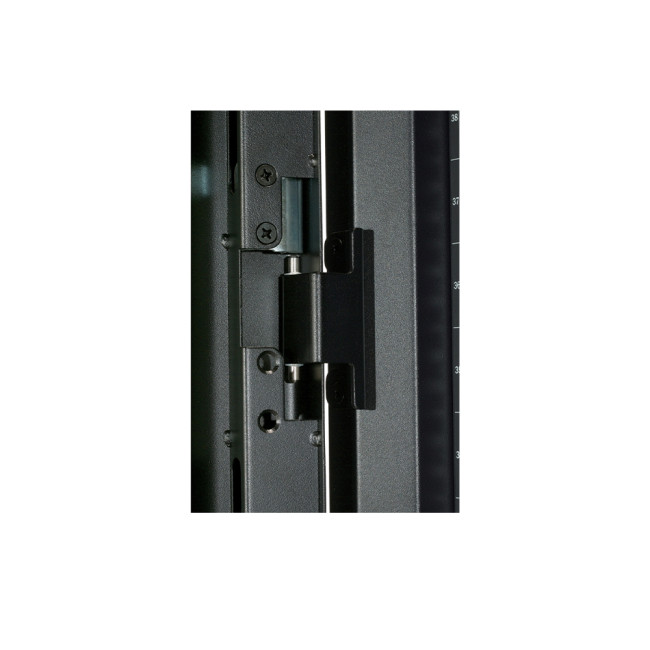

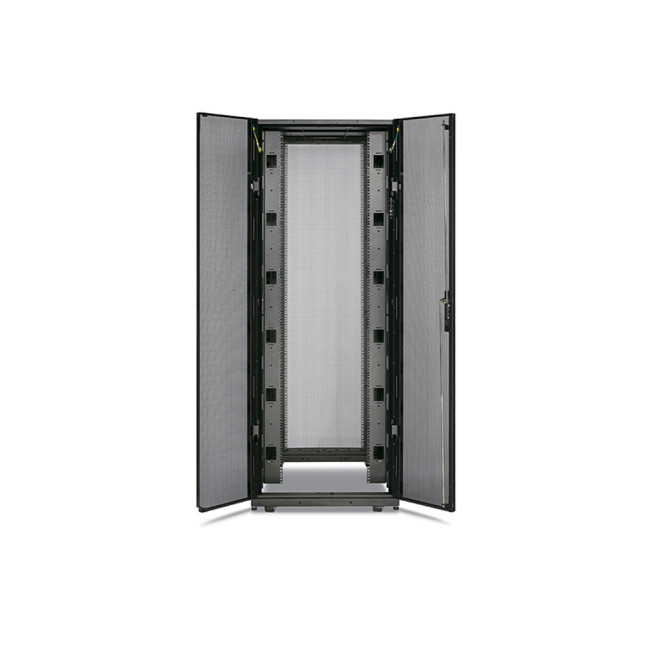

The NetShelter SX is designed for optimum convenience. The roof comes preinstalled with brush strips and features large cable access slots. To make installing equipment easier, the roof also has pull-pin hinges for fast removal and large input cord pass through to overhead from Rack PDUs. Once removed, the roof is reversible for repositioning the larger cable openings to accommodate power distribution plugs and data cabling. The front and rear doors remove easily thanks to their lift-off design. These doors have perforated areas for ventilation and a curved profile for greater surface area.

Mounting and Adjustment Options

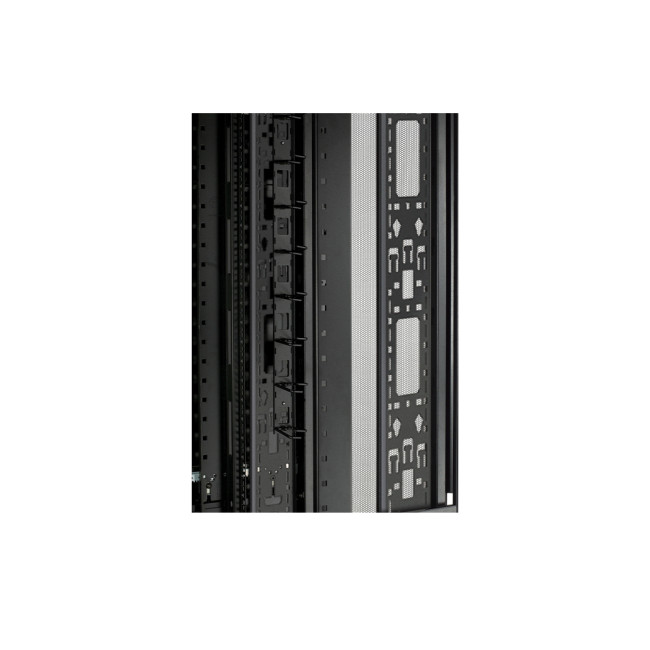

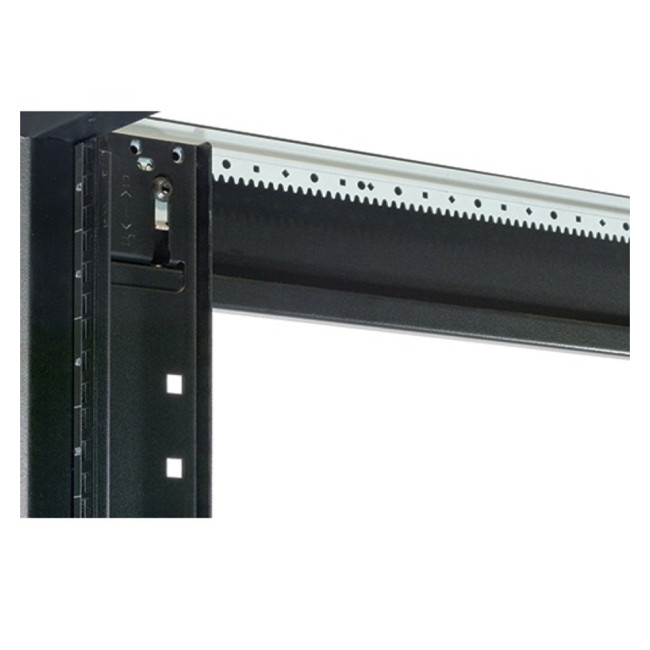

The NetShelter SX provides a range of flexible mounting options. Integrated and adjustable rear accessory channels with two mounting bays each support up to four accessories such as vertical Rack PDUs and cable organizers to save cabinet u-space for servers, storage, and network devices. These channels come preinstalled in the rear but can be moved to other cabinet areas to suit your needs. The vertical equipment mounting rails can be adjusted in 1/4-inch increments to accommodate virtually any type of IT equipment. Additionally, preinstalled joining hardware gives you the option of joining cabinets in a row to provide greater stability and alignment of the row.

Lockable, Quick-Release Side Panels for Security and Accessibility
For easier handling and access to equipment, the half-height quick-release side panels can be locked for security remove quickly and are designed to remain in place and not increase the width of the cabinet when joined to adjacent cabinets. Integrated eyebolt holes at the top of the frame let you lift and move the NetShelter SX via eyebolt lifting mechanisms.

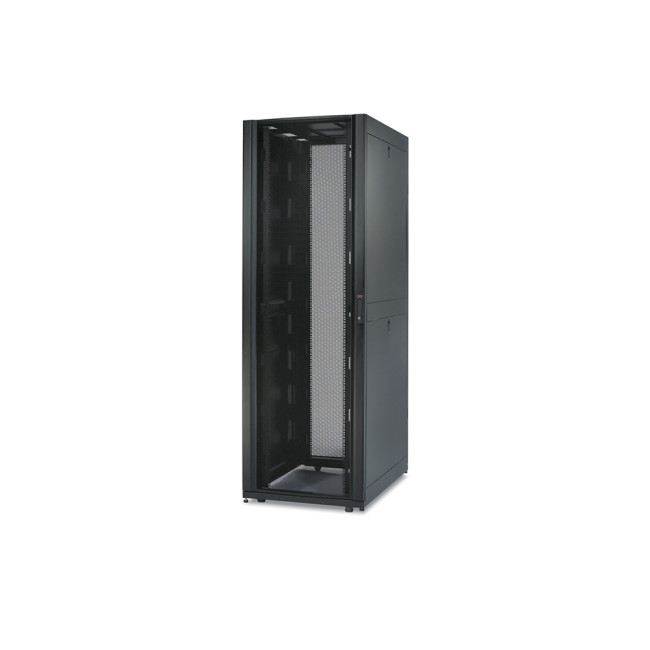

APC NetShelter SX 42U Cabinet AR3100
600 millimeter Wide x 1070 millimeter Deep
Featuring a standard width, the APC NetShelter SX 42U Cabinet provides feature-rich premium IT cabinet for rack-mounting for server, storage, and network devices. This cabinet is optimized for use with APC Rack Power Distribution and cable management systems, and any EIA-310-compliant 19-inch equipment can be mounted within. For convenient, flexible operation, the NetShelter SX boasts roof slots and an open bottom design for cable access options, as well as adjustable mounting rails for varying depths of equipment. Frame construction with low-profile casters and 42U height allows for easy rolling through doorways. NetShelter SX is compatible with APC by Schneider Electric rack and accessory products for easy customization.
