The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe
SSD caching to deliver high performance for applications such as
surveillance systems, virtual machines, file servers or backup servers.
Dual HDMI outputs also provide direct multimedia playback and robust
surveillance monitoring. QNAP will provide long-term availability and
support for the TS-453E, providing a great choice for businesses requiring
matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port
trunking to deliver up to 5Gbps.

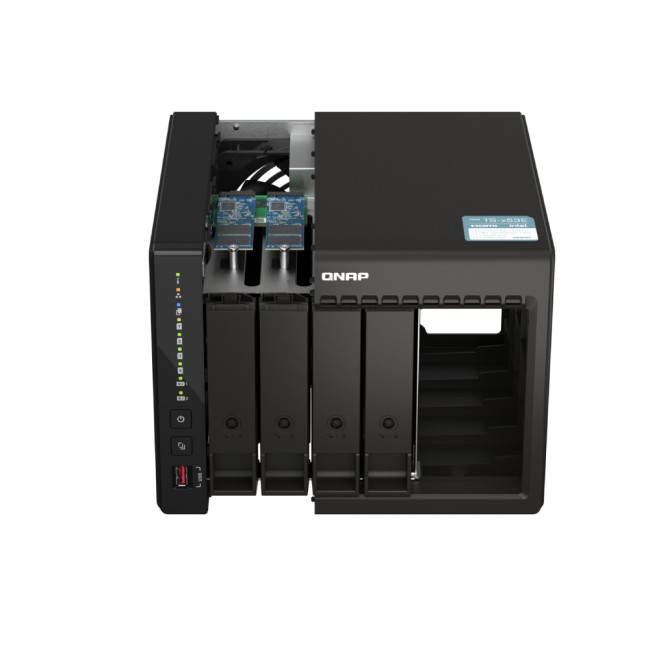

Dual M.2 2280 PCIe slots Attain
greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold
separately) or Edge TPU.
8GB RAM onboard System performance and
multitasking is optimized with 8GB RAM.
Long-term model The TS-453E
will be available and supported by QNAP for an extended period, up to
2029.
Dual HDMI output The dual-screen extension can be used for
surveillance or 4K high-resolution video playback.
Expand storage
capacity Supports USB expansion enclosures (see the compatibility
list).
|
Storage
|
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5,M.2 |
| Number of M.2 (M & B) slots |
2 |
|
Processor
|
| Processor manufacturer |
Intel |
| Processor threads |
4 |
| Processor frequency |
2.6 GHz |
| Processor family |
Intel® Celeron® |
| Processor model |
J6412 |
| Processor cores |
4 |
|
Memory
|
| Internal memory |
8 GB |
|
Network
|
| Ethernet LAN |
Yes |
| Wake-on-LAN ready |
Yes |
| Jumbo frames support |
Yes |
|
Ports & interfaces
|
| USB port |
Yes |
| HDMI version |
1.4b |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Design
|
| Cooling type |
Active |
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| LED indicators |
LAN, Power, Status |
| Chassis type |
Tower |
|
Technical details
|
| Type |
NAS |
| Product colour |
Black |
| LED indicators |
LAN, Power, Status |
| Chassis type |
Tower |
| Buzzer |
Yes |
| Number of fans |
1 fan(s) |
|
Performance
|
| Type |
NAS |
| On/off switch |
Yes |
| Reset button |
Yes |
| Buzzer |
Yes |
|
Cooling
|
| Cooling type |
Active |
| Number of fans |
1 fan(s) |
|
Management features
|
| On/off switch |
Yes |
| Reset button |
Yes |
|
Power
|
| Power consumption (max) |
33.88 W |
| Power supply unit (PSU) capacity |
90 W |
| AC input voltage |
100 - 240 V |
| Power consumption (sleep) |
15.78 W |
| External power adapter |
Yes |
|
Weight & dimensions
|
| Width |
180 mm |
| Depth |
235 mm |
| Height |
177 mm |
| Weight |
3 kg |
| Package weight |
4.3 kg |
|
Packaging content
|
| External power adapter |
Yes |
|
Operational conditions
|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
|
Packaging data
|
| Package weight |
4.3 kg |
