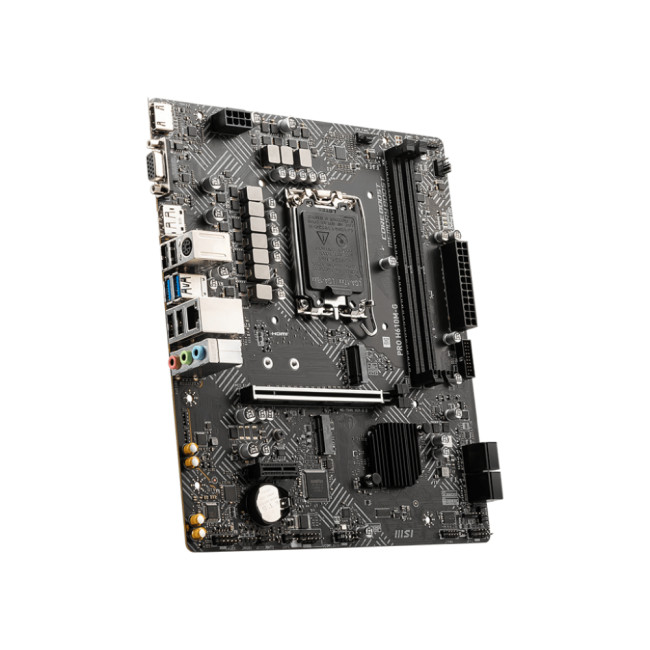

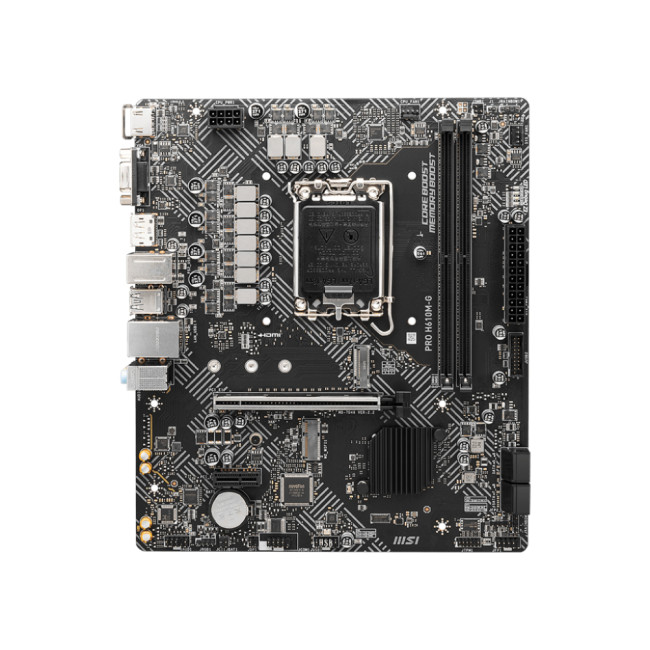

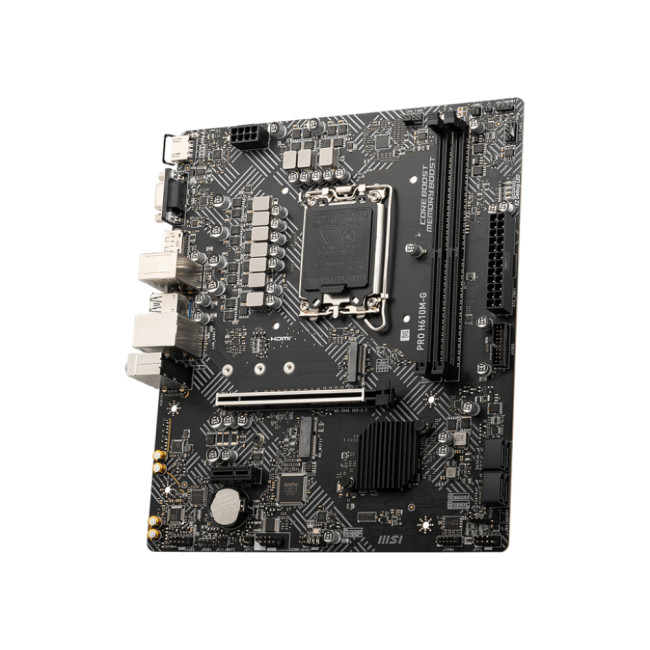

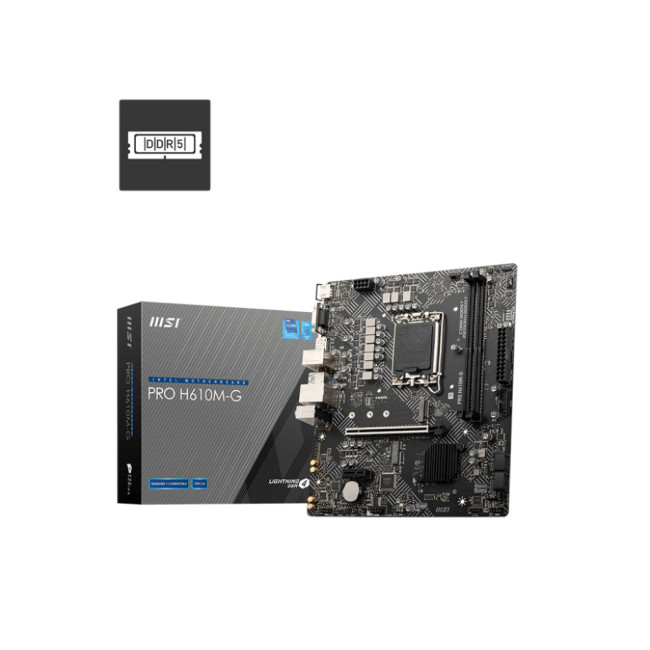

MSI PRO H610M-G micro ATX Intel H610 LGA 1700 Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FROZR AI COOLING Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. FULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. LOW LATENCY GAMING LAN POWERED BY INTEL Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. EXTREME STABILITY & COMPATIBILITY TESTING MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Internal I/O
Number of M.2 (M) slots	1
12V power connector	Yes
Supported storage drive interfaces	SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Power fan connector	Yes
Number of SATA III connectors	4
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Processor socket	LGA 1700
Memory
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Non-ECC	Yes
Maximum internal memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
Storage controllers
Supported storage drive interfaces	SATA III

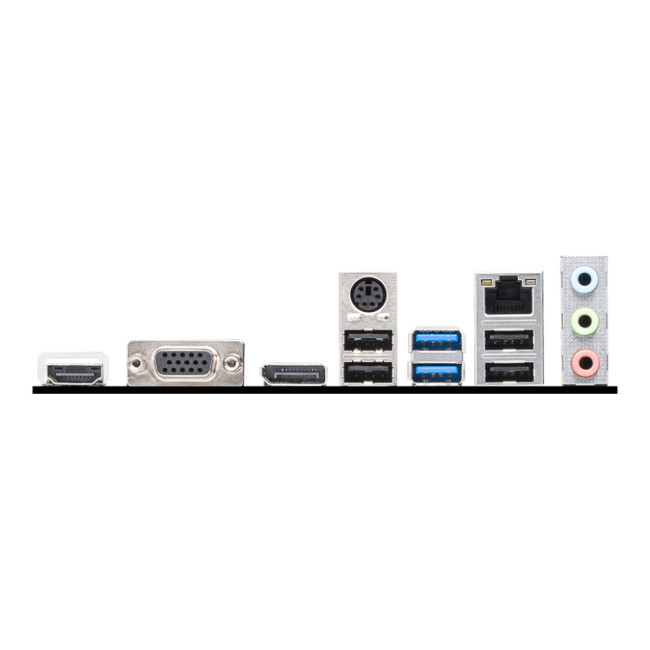

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPort version	1.4
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
LAN controller	Intel I219V
Ethernet interface type	Gigabit Ethernet
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC892 / Realtek ALC897
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 slots	1
PCI Express x1 slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
Clear CMOS jumper	Yes
Software
Windows operating systems supported	Windows 11 x64
Drivers included	Yes
Weight & dimensions
Width	244 mm
Depth	211 mm
Packaging content
Drivers included	Yes
Cables included	SATA
