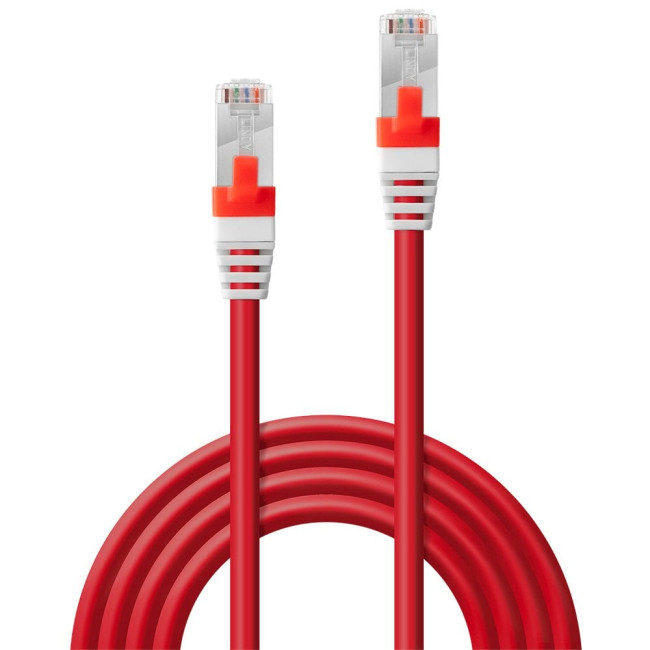

Lindy S/FTP 3.0 Meter Cat 6A Twisted Pair Patch Cable, Solid LSOH, 10Gbps Rate

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

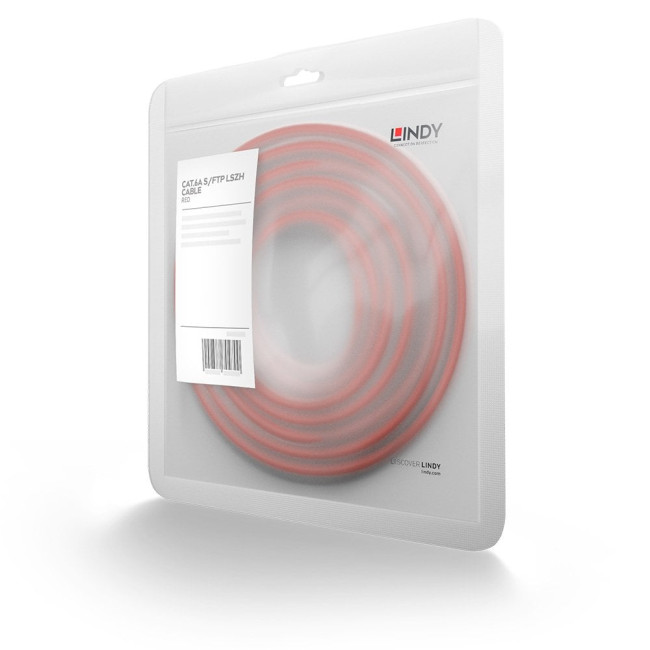

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

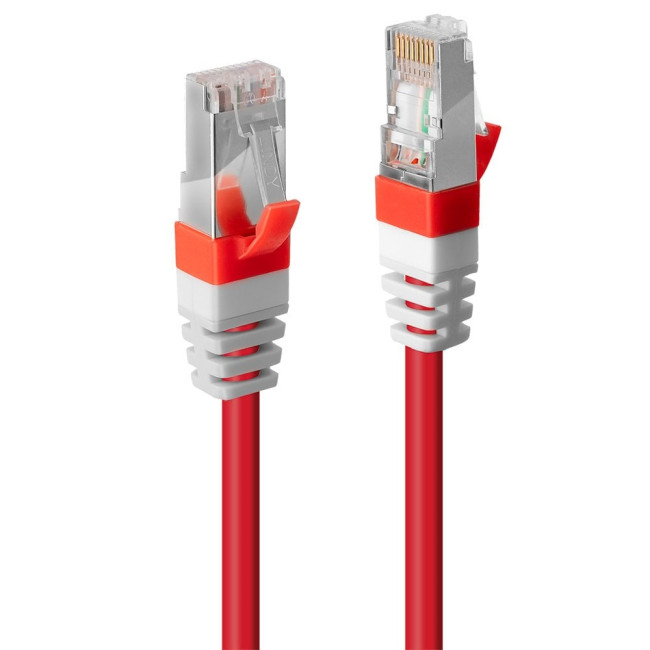

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Brass
• Pin Construction: Copper Alloy
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

• Length: 3m (9.84ft)
• Colour: Black
• Type: Cat.6A
• Jacket Diameter: 6.2mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium / Polyester

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 67.86dB/100m @ 500MHz
• Minimum Bend Radius: 18.6mm (0.74in)
• Operating Temperature: -25°C - 60°C (-43F - 140°F
• Storage Temperature: -25°C - 60°C (-43F - 140°F)
