Key Features:
-

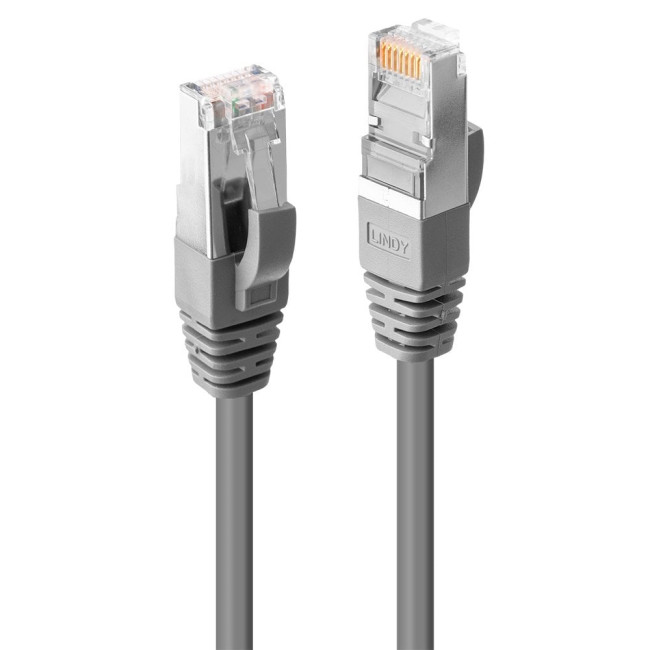

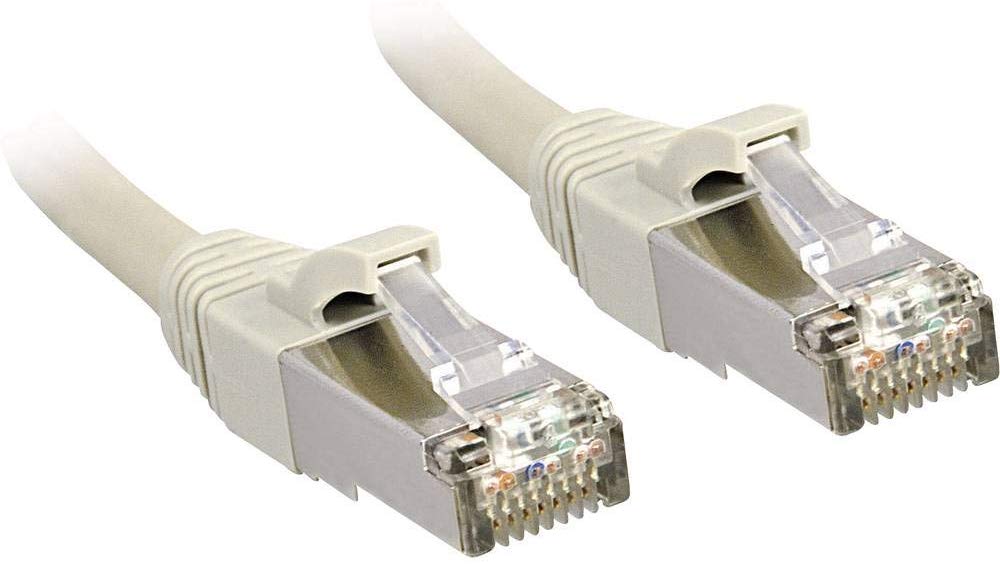

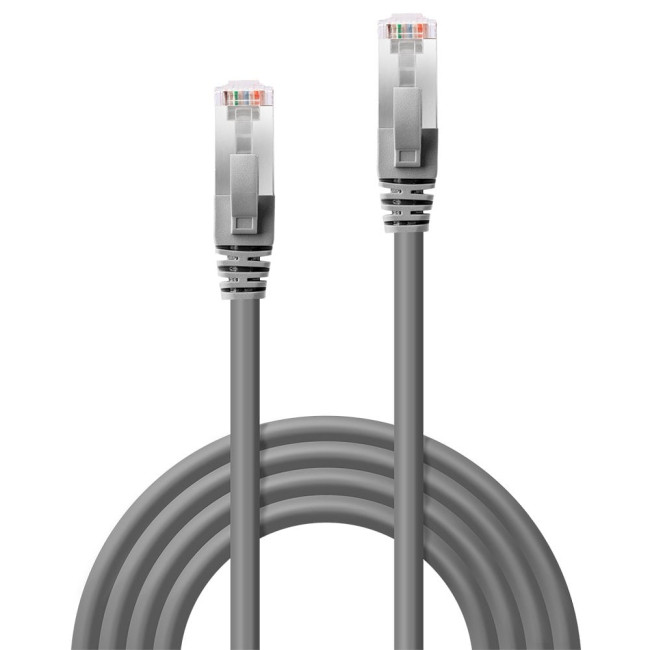

Twisted Pair Patch Cable
with RJ45 connectors and Test Report (100% Tested)
-
Cat.6 S/FTP PIMF, LSZH
-
Integrated snagless
connector for latch protection
-
Gold plated pins for
better conductivity and elimination of signal loss
-
10 year warranty
Product Description:
Cat.6 S/FTP network cable
with support for bandwidth up to 250MHz and features a snagless design
with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6
cable for operating frequencies up to 250MHz in shielded version with
braid as overall shield and foil shield for the individual wire pairs
(S/FTP). Cat.6 cables are widespread throughout the professional sector.
They are ideal for Gigabit Ethernet or AV extension applications. These
cables are manufactured and tested according to the ISO/IEC 11801

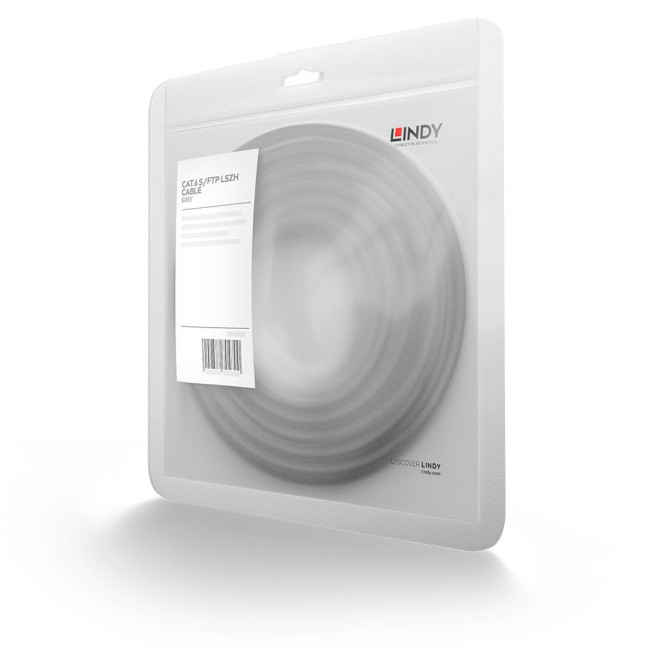

specification. The cables are packaged individually in a polybag. The
gold-plated contacts ensure reliable, corrosion-free connections over
extensive periods of time. A robust snagless strain relief design
prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product
suitable for use in public spaces with its low smoke emission and
elimination of toxic halogen emissions.
Specifications:
-
Supported Bandwidth:
250MHz
-
Nominal Attenuation:
38.3dB/100m @250MHz
-
Minimum Bend Radius:
18.6mm (0.74in)
-
Operating Temperature:
-25°C - 60°C (-43F - 140°F)
-
Storage Temperature:
-25°C - 60°C (-43F - 140°F)
