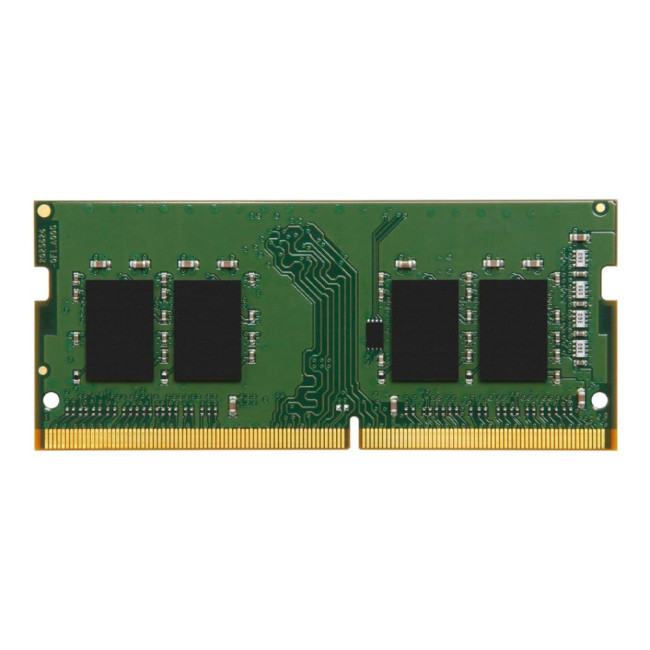

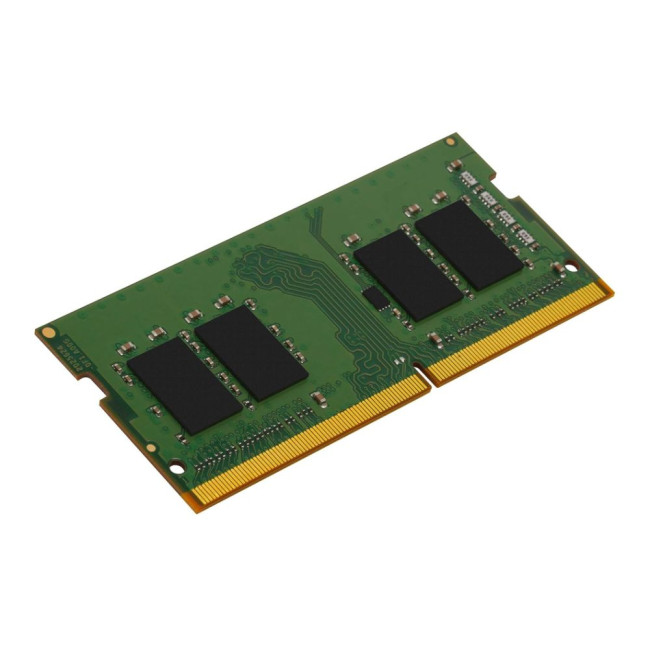

Kingston Technology KVR32S22S6/8 8GB 3200 MHz DDR4 Laptop RAM

Kingston Technology 8GB DDR4 3200MHz Laptop Memory Module

Kingston 8GB 3200MHz DDR4 Non-ECC CL22 SODIMM 1Rx16 [KVR32S22S6/8]
This product describes ValueRAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.

Features
Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Low-power auto self-refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

8 internal banks; 2 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.18 (30.00mm)

RoHS Compliant and Halogen-Free
